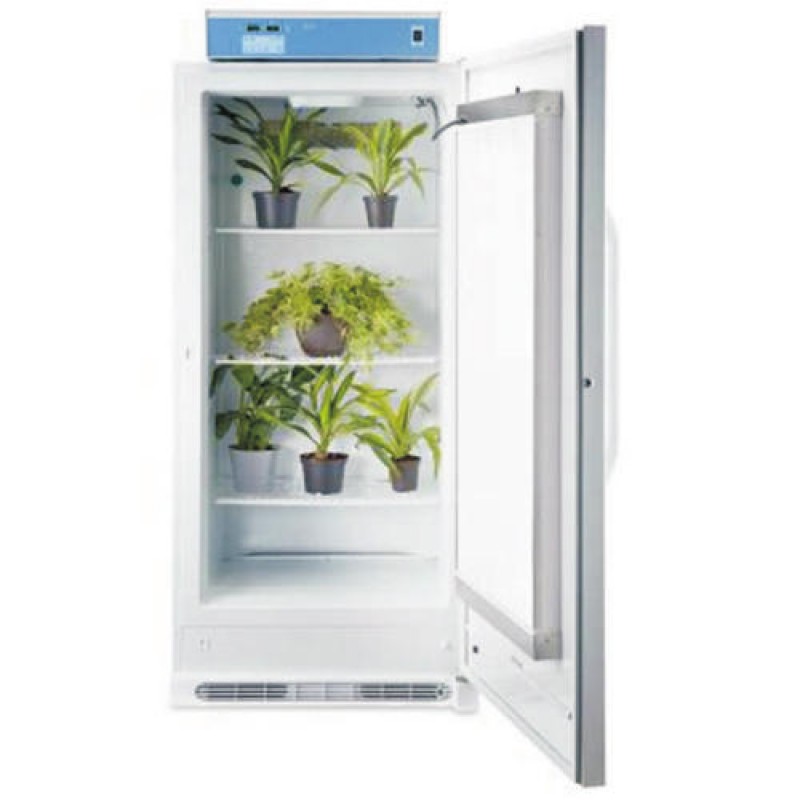

PLANT GROWTH CHAMBER
Product Details:
APS Many area of plant research require the use of a controller environment. In this way, a plant's response to different conditions can be monitored, or a particular habitat imitated. Standard propagation techniques can be greatly speeded up using a growth cabinet as well as achieving a higher success rate. Where micro propagation is being used a growth cabinet is essentialfor rooting the plantlets and adapting them to normal conditions. This plant growth cabinet is ideal for all routine propagation and research applications.
CONSTRUCTIONS
With a solid see thru double walled door and a full view inner plexi-glass door enables inspection and monitoring of inner chamber specimens without distributing the process temperature.
* Excellent quality magnetic gum packing door gasket for external door.
* User-oriented design of shelves makes you adjust each space of shelves without difficulty.
* Forced air circulation at triple walled back by durable coaxial blower, maintains optimum temperature uniformity and homogeneity.
* Foamed-in-place PUF insulation ensures thermal stability and reduces electrical energy consumption.
* Caster wheel mounted for easy portability.
* Front double walled door is provided with lock and key arrangement.
* Door operated illumination lamp is fitted inside the chamber for easy visibility.
* Finned tube evaporator facilitates uniform and faster cooling effects.
* Safety Thermostate to prevent overheating.
* Fitted with exterior illumination with fluorescent tubes/lamps.
* Works on 220/230 Volts AC (50/60 Hz frequency)

Model	APS-PGC-11	APS-PGC-17	APS-PGC-28	APS-PGC-34
Dimension Inner (WxDxH) (in mm)	455x410x610	505x415x830	570x550x875	650x580x900
Capacity	112 ltrs	171 ltrs	280 ltrs	350 ltrs
Volume	4Cuft	6Cuft	10 Cuft	12 Cuft
MOC Outer	Powder coated CRC Steel Sheet
MOC Inner	Chamber and trays made of Stainless Steel (SS-304)
No. of Shelves	2	2	3	3
Type	Forced Convection Type
Freezer Compressor	Hermetically sealed air cooling compressor system
Temperature Range	10OC to 60OC
Temperature Accuracy	+1OC TO +0.1OC
Humidity Creation	Through sophisticated steam injection process
Humidity range	5% above ambient from 40% to 95%RH at cool temperatures
Humidity Accuracy	+5%RH To +1%RH
Evaporator	Finned tube evaporator for faster cooling effects
Safety	Over temperature limiter switch prevents overheating
Insulation	Foamed-in-Place PUF insulation ensures thermal stability and reduces electrical energy consumption
Illumination	Exterior illumination with fluorescent tubes/lamps.
Temperature Controlle	Microprocessor Based Digital Temperature Indicator cum Controller with LED/LCD display. for Set Value. (SV) & Process Value (PV). OR Microprocessor based alphanumeric LCD/LED Display Controller
Caster Wheel	Caster wheel mounted for easy portability.
Humidity Controller	Microprocessor based Digital P.I.D Digital Humidity Indicator-Cum-Controller
Electrical Supply	220/230V AC, 50/60Hz
