PLC Based Lift Simulator Module Tesca Technologies

Process Control Trainers

SPECIFICATION
Order Code - 52247

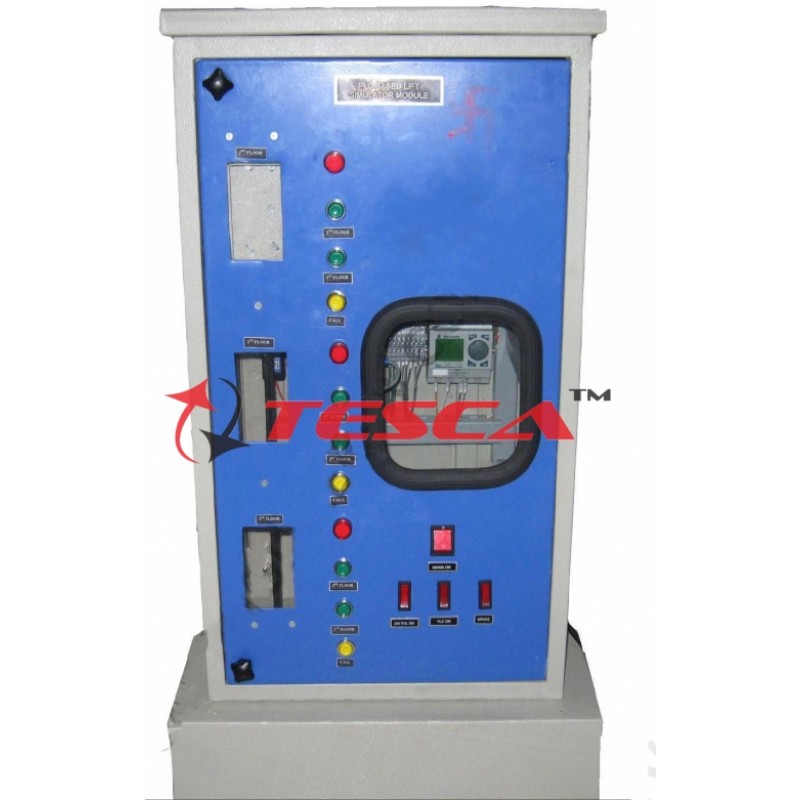

PLC Based Lift Simulator Module
The PLC Based Lift Simulator Module gives an idea regarding usage of Programmable Logic Controllers in industrial application.

Range of experiments:
Study of PLC Program for Lift.
Study of lift position control.
Study of sequencing and priority of position of lift.
Study of combination logic of lift Operation Control.

Features:
Compact Ergonomic Design.
User Friendly, Self Explanatory Systems.
Robust Construction.
Enhanced Electrical Safety Considerations.
Training Manuals, Ladder Diagrams for Operation Ease.
M.S. powder coated cubical plant with standard Instrument Mountings.
Inbuilt Safety Measures to avoid improper usage.
Computer Interface (Optional) for ladder programming.
Three floor lift module.
Chain pulley block mechanism.
Bidirectional motor controlling the movement of the lift.
Proximity sensors for sensing lift position.
Push button switches along with position sensors for motor direction control.
PLC with 8 DI/DO Configurations & PC-PLC communication cable (Optional), standard Program.
Caster wheel mounted movable frame
System Dimension: 1.5Ft. (L) X 1.125Ft. (W) X 2.5 Ft. (H)
Weight: Approx. 22Kgs
