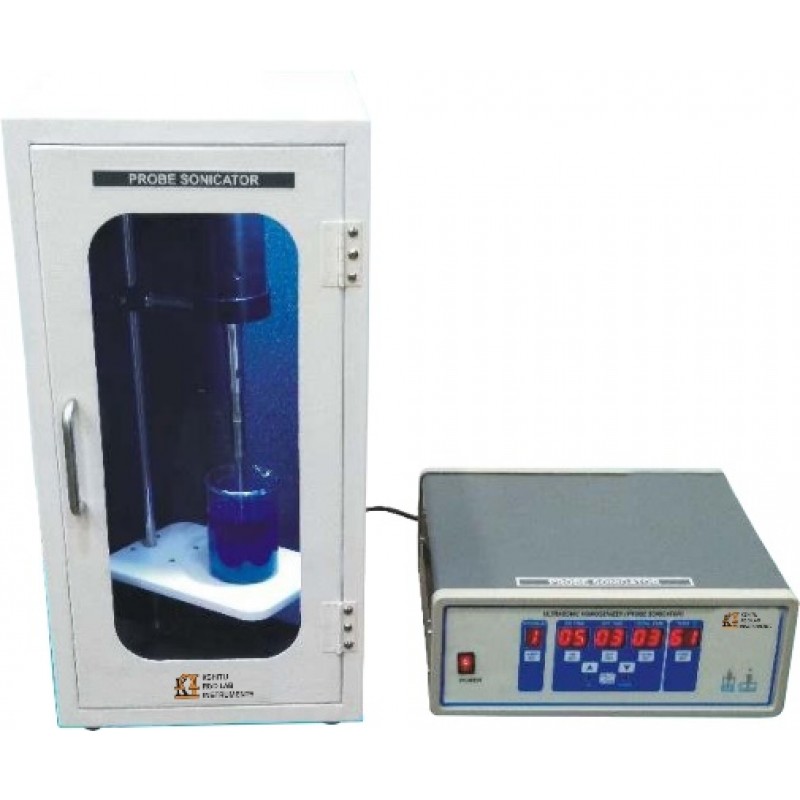

PROBE SONICATOR

MODEL NO.: KI-PS

Product Features:

• Standard probe TITANIUM Alloy Material
• Piezoelectric frequency energy converter.
• Timer control the total working time from 1 min to 99 min.
• Auto- tuning and power control convenience for user.
• Set Temp. (100° C) as per required.
• Display the remaining time on countdown state.
• Digital Display with Microprocessor Control.
• Programmable in 10 USER Settings
• ON/ OFF impulse timer: make sure to deal with temperature sensitive sample. ON & OFF can be choose to continue setting from 1s, 4s or 8s.
• Variable Amplitude control: 0 - 100%
• Digital operation, easy direct type.

Advantages:

• Homogenization, Micro fined Emulsion
• More stable compares to processes.
• Very flexible it can easily be transferred from one batch to other without intermediary operations like emptying, cleaning and refilling. Ultrasonic Processor can be transported to various locations of sample operations.

Ultrasonic Homogenizers are recommended for homogenization and analysis of laboratory samples that do not require traditional grinding or rotor- stator cutting techniques for processing.

The KSHITIJ Ultrasonic Homogenizers offer precision engineering with all necessary features to create a total system for ultrasonic disruption. In biological applications, Probe Sonicator is often used to disrupt cell membranes and release cellular contents. Probe Sonicator is also used to fragment molecules of DNA. Probe Sonicator is commonly used in Nano technology for evenly dispersing Nano particles in liquids and for breaking down particles to Nano size.

Applications:

• Prepare Tissue, Prepare emulsions, Immiscible Liquids.
• Accelerate Enzymatic Reactions, Accelerate Chemical Reactions, Stimulate Bacterial Activity.
• Disperse Solids, Degassing of Liquids, De-agglomerate Powders.
• Dissolve Powders, Dissolve Tablets, Emulsify Cosmetics
• Extract DNA/ RNA, Extract Proteins, And Emulsify Liposome.
• The amplitude of these mechanical vibrations are magnified by this velocity Horn.

Sound Enclosure:

Sonication produces high pitch noise that can cause discomfort to the user and anyone in the laboratory. The Sound Enclosure significantly reduces this noise to safe levels. The internal support collar is made to safely hold the converter and probe assembly with in the box. The inside of the box is water resistant and the door is made from clear acrylic so you can view your probe and sample.

Technical Parameters:

• Timer: Digital 1 min - 90 min adjustable Power adjustable: 20%- 100%, Impulse: digital closed loop, open loop: 1s, 4s, 8s
• Piezoelectric frequency energy converter: Lead zirconate TITANIUM (PZT) pyro electric ceramics.
• Standard Probe: titanium alloy material Diameter (probe): 3mm/ 6mm/ 9-10mm/ 12mm.
• Power Supply: AC230, 50Hz/ 60 Hz
