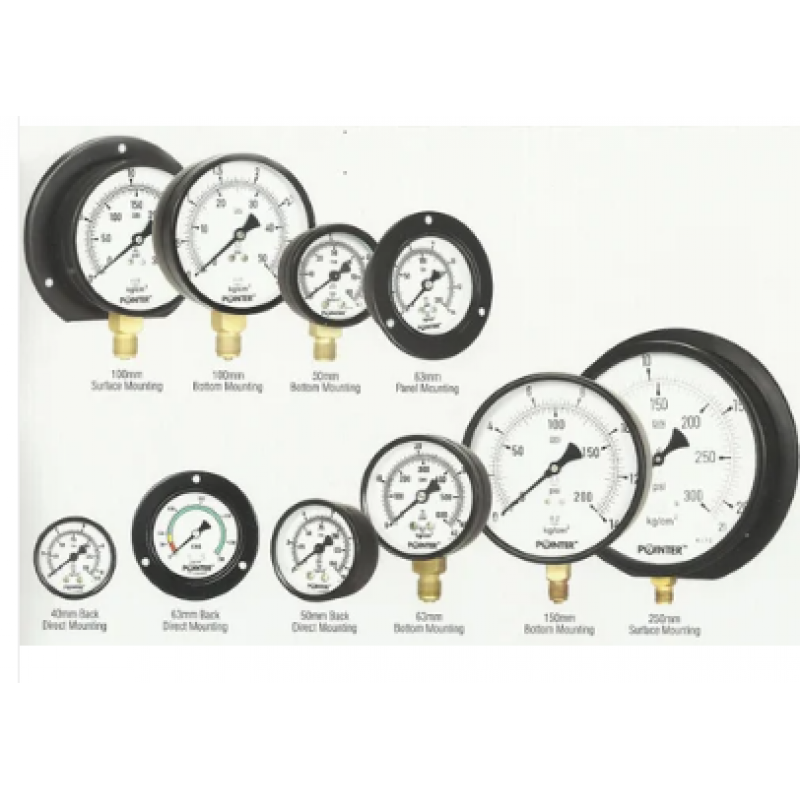

Panel N Surface Mounting
Product Details:
Construction features dial size : 40mm, 50mm, 63mm, 100mm, 150mm & 250mm accuracy : ? 2% of full scale case & bezel : drawn steel black painted press fit type. movement : brass pressure element : brass ( ≤ 70 bar `c` type ) SS 316 ( > 70 bar coil type ). socket : brass dial : aluminum white painted with 270 degree black scale marking pointer : aluminum pointer with black finish. window : plain glass over load protection : 125% of f. S. D. For ≤ 150 kg/cm2 115% of f. S. D. For > 150 kg/cm2 joints : soldering mounting : stem (bottom), surface, panel mounting, flush panel (bracket type) connection : ⅟8 ? , ⅟4 / ⅜ / ⅟2 BSP / npt scale range : vacuum & pressure up to 700kg/cm2 optional features : Ammonia (nh3), oxygen(o2), freon scale available on request.
