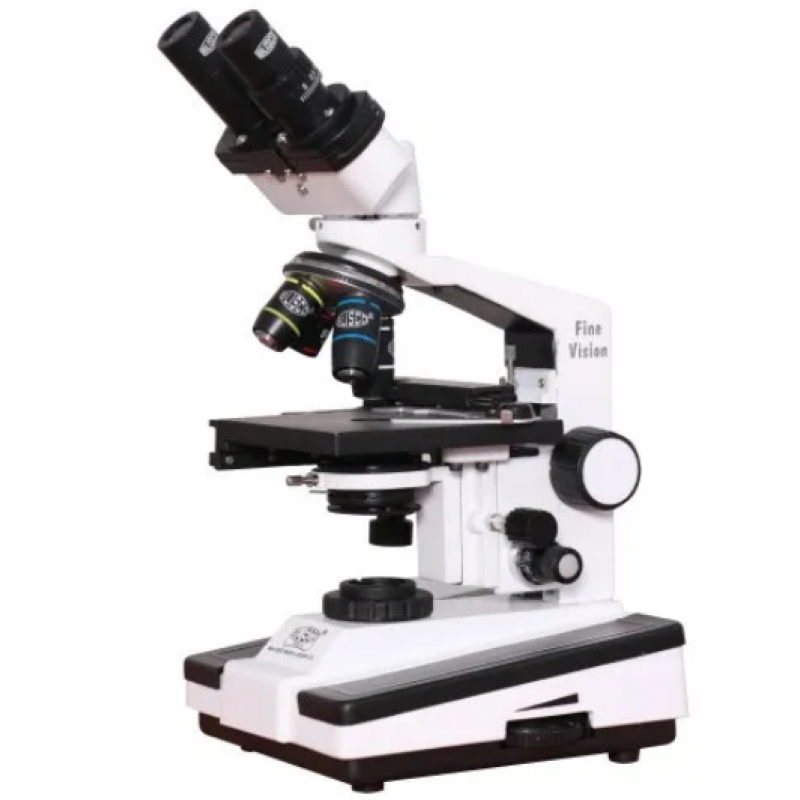

Pathological Binocular Microscope (FINE VISION SERIES)

Model Name/Number	MODEL BLS-113
Brand	BLISCO
Magnification	1500
Drawtube	Monocular

Robust ,Heavy  rugged, stable sturdy stand, ergonomic design body very much easy & convenient in working, made of aluminum die cast with anti rust material with white textured finish, antifungal PU paint.

Viewing Head:  Binocular Inclined tube, 45°& Rotatable to 360°.
Eyepiece: Wide Field eyepiece WF 10x. Huygenian 5x or 15x (Anyone pair).
Nosepiece: Perfectly centered dust proof quadruple revolving nose piece.
Objective: DIN (long barrel) Achromatic colored corrected, Anti-fungal, Anti-bacterial multi-layered hard coated Para focal & Presenter 4 x, 10x, 40x SL and 100x SL Oil immersion objectives in unbreakable container.
Mechanical Stage: Horizontal low drive coaxial mechanical stage in extra large size (130mmx145mm) for X & Y movement 80-50mm on stainless steel balls of slides with ???ne venire graduations reading 0.1mm.

Focusing Movement: Separate Coarse & highly sensitive fine movement mechanical graduated to0.02mm. With locking device.
Condenser: Bright field condenser Abbe N.A. 1.25 & iris diaphragm with built in swing out filter holder with up-down.
Light Source: Illumination system LED 3.5W 3V with intensity control regulator. CE approved.
Supplied with: User manual, Vinyl Dust cover, cleaning cloth.

A)  Complete in Thermocol box.

  B) Complete in Thermocol & plywood cabinet.
