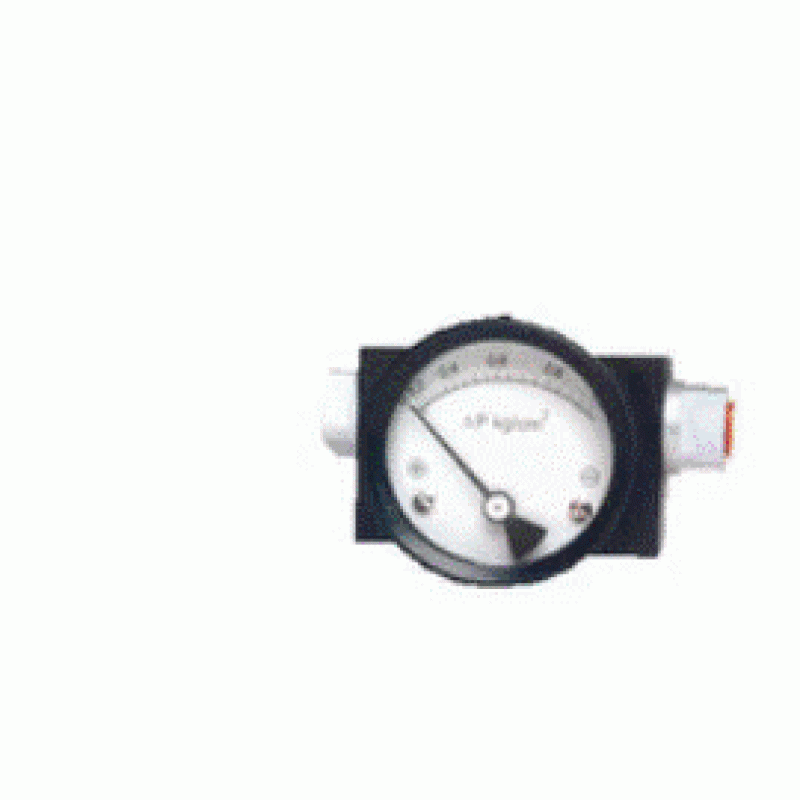

Piston Type Differential Pressure Gauges
Product Details:

Piston Type Differential Pressure Gauges Magnetic coupling Piston type Differential Pressure Gauges (CE Certified model) These gauges are suitable for Non-Magnetic Fluids only. Model : 200 DPG Range : various ranges from 0.25 to 10 bar Dial Size : various options like 2”, 2 1/2”, 3 1/2”, 4”, 4 1/2”, 6” dia. Connection : 1/4” NPT (F) Accuracy : + / - 2% FSD(Ascending) Accuracy : + / - 2% FSD(Ascending) Porting : Options like - In–Line, Back or, Bottom Calibration : Non-Linear, spread over 65 degrees to 75 degrees Arc. Sensing Element : Piston Wetted parts : Aluminium, Brass, SS 316, Buna N, Viton Max. Working Temp.: 80 degree celsius Enclosure : IP 65
