Plug & Play-Technology
Product Details:
The most modern microprocessor technology – packed into a robust controller casing – in the unique plug and play technology well proven since 1980:
The advantage of this modular approach for upgrading or service is the definition of flexibility. Short down-time, no return of units for repair…just  a couple of minutes to replace the control facia. The Unistat®-Pilot - All under control
A colour graphics 3.5 inch TFT screen displays information in plain language.
It uses the unique HUBER-Easy-control menu guidance: The functions are self explanatory and are listed in alphabetical order in the language chosen by the operator.
Administrators can reduce the functions offered and so generate individual user menus (E-grade "Professional").The menu driven user interface is accessed via the touch-screen, soft-keys or the rotary encoder.

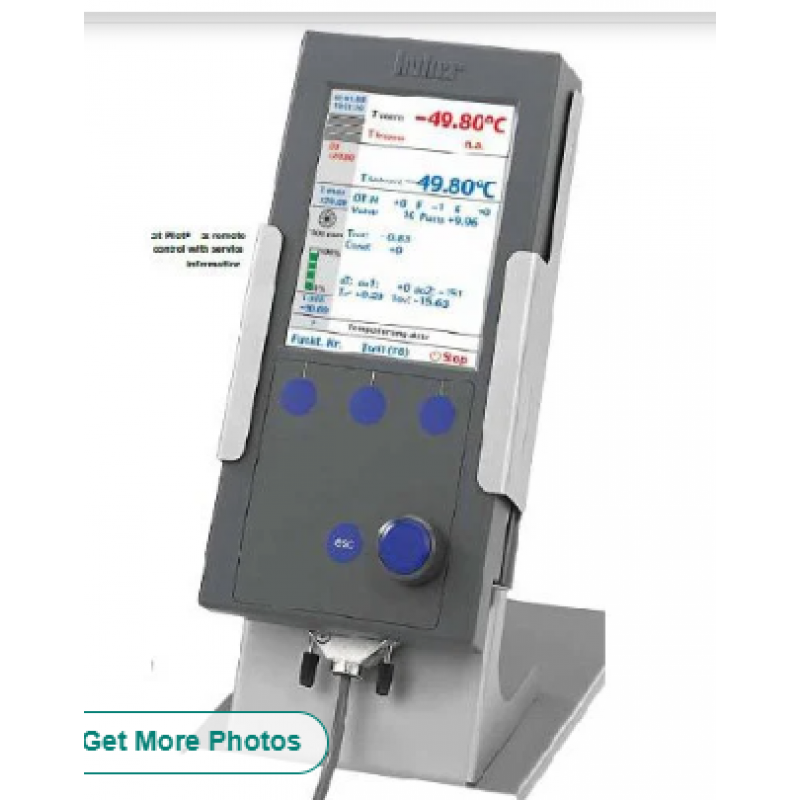

unistat® pilot
Is the name of the microprocessor based controller used on the Unistats®. The unique plug and play technology enables the fast and easy change of the controller electronics in case of a fault resulting in minimum down times.
Range of functions:
Function check on switching on.
Easy Control.
Colour TFT-Display with Touch-screen.
Operator guidance language chosen from German,
     English, French, Spanish, Italian or Russian.
     (Cyrillic).
Programmer with 100 Segments split over
    10 Programs.
TAC (True Adaptive Control).
    Self optimising internal and cascade controller.
Connection for Process Pt100.
ComG@te with connections for
    - External control signal
    - Programmable potential free contact
    - Digital interface RS232, RS485
    - AIF (Analogue Interface) 0/4-20 mA or 0-10V
    - Level monitoring
Calendar, Date, time
Air purging program
De-gassing program
programmable restart after power failure
Diagnosis software
Unistats® have a stepper motor controlled expansion valve "CoolNet®" for precise and secure control of the refrigeration plant. All HT models work with a stepper motor controlled "HT slider valve". The control of the stepper motor is carried out by the Unistat® Control – with system feedback to the controller from the most functional and reliable sensors.
