Portable Dew Point Meter

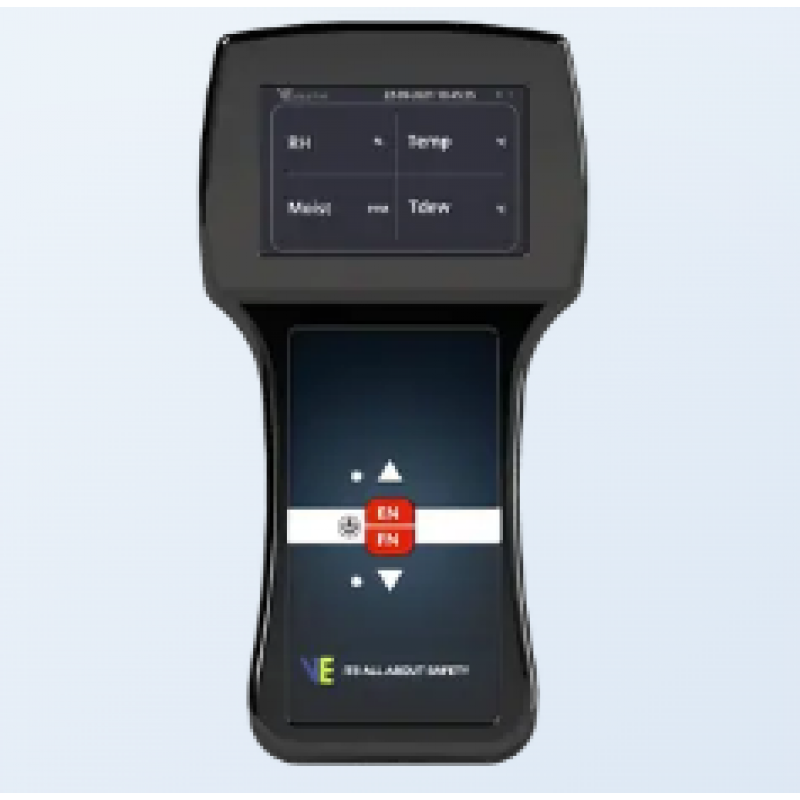

A portable dew point meter by Vasthi Instruments is a hand-held, light weight, portable, and affordable dew point meter that is an easy-to-carry, battery-operated measuring tool. The portable dew point meter has an operating pressure of up to 20 bar and moisture measuring range of 0–23000 ppm. The device has an incredible battery life, up to 20 hours on a single charge. The instrument is assembled in a rugged handheld IP65-protected plastic enclosure and equipped with quick-disconnect tubing couplings and an internal sensor manifold.

FEATURES :

• Microprocessor-based portable battery-operated instrument.
• Digital Graphical Display Measuring range -100 to +30°C dew point Et other ranges also available on client requirement
• Samples compressed air up to 12 Kg/cm.
• Pressure and up to 95°C temperature can be measured directly.
• Quick disconnect fitting, desiccant test.
• Handy and lightweight.
• Inbuilt thin film water vapor sensor.
• Optional RS – 232 computer interface & data logger.

Ordering information with RANGES

Model – VD42-H2
Measuring Range: -40°C to +30°C

Model – VD62-H2
Measuring Range: -60°C to +30°C

Model – VD82-H2
Measuring Range: -80°C to +30°C

Model – VD92-H2
Measuring Range: -110°C to +30°C
