Process Scanner
Product Details:

Brand	ELECTRONET
Model Number	SC-204
Power Supply	90 - 250 V AC, 50 Hz
Weight	4 kg (Approx.)
Dimensions	96 (H) x 192 (W) x 250 (D) in mm approx. for DIN STD. Enclosure
Mounting	Flush of the Panel for DIN STD & Wall mount for WP / FLP Enclosure
Response Time	200 mSec per channel

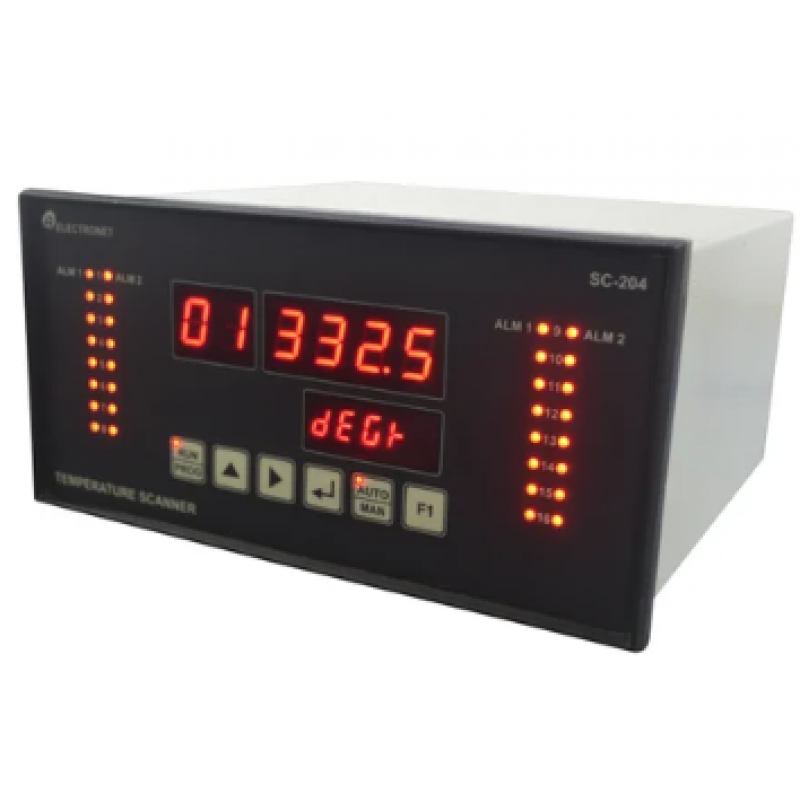

Electronet series SC-204 is unique micro-controller based 8 /16 channel dedicated/universal input process scanner.
It is in a most miniature size with multiple features. SC-204 can accept the input like RTD, Thermocouple, mA, Voltage, mV and display its processed value with optional alarm settings and a communication port. All operating parameters are programmable through front membrane keypad. Individual LED display available for channel number, process value, and engineering unit
