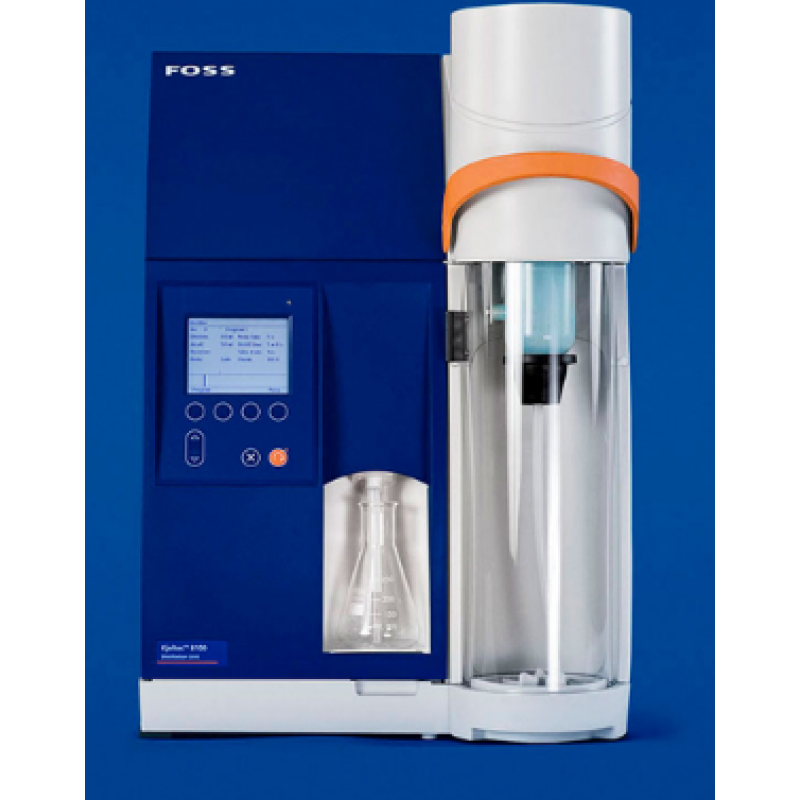

Protein Nitrogen Estimation KT 8100

Distillation time: 3.5 min at 30 mg N (6.5 min at 200 mg N) Reproducibility: 1% RSD (including the digestion step) Recovery: > 99.5 % at nitrogen levels between 1 – 200 mg N Reagent pump volumes: 0 – 150 ml in steps of 10 ml Delay: 0 – 1800 seconds Steam addition for equillibrium: 0 – 15 seconds Power consumption: 2 200 W Water consumption (during distillation only): 2 l/min at water temp of 30°C,1 l/min at water temp of 15°C Corrosion free coloured plastic cabinet. Variable output steam generator Water saving system Cooling water flow control Distillate temperature monitor Polypropylene splash head Polypropylene tube emptying vessel Bellow pumps for reagent addition /or pump with positive displacement. 20L reagent tanks fitted with proper capping and reagent sensors. Reagent sensors for Water/Alkali/Waste Automatic alkali addition Suitable chiller for cold water and suitable voltage stabiliser may be offered as optional. Block digestor (as per below specification ) with all the accessories and catalyst tablets. Number of samples: 08 Temperature range : 100 to 440 degree C Temperature setting repeatability : 1 degree C Temperature readout : digital Over temperature protection Time setting per step : 1 - 1199 min Scrubber to neutralise fumes: It should not need running tap water during digestion.
