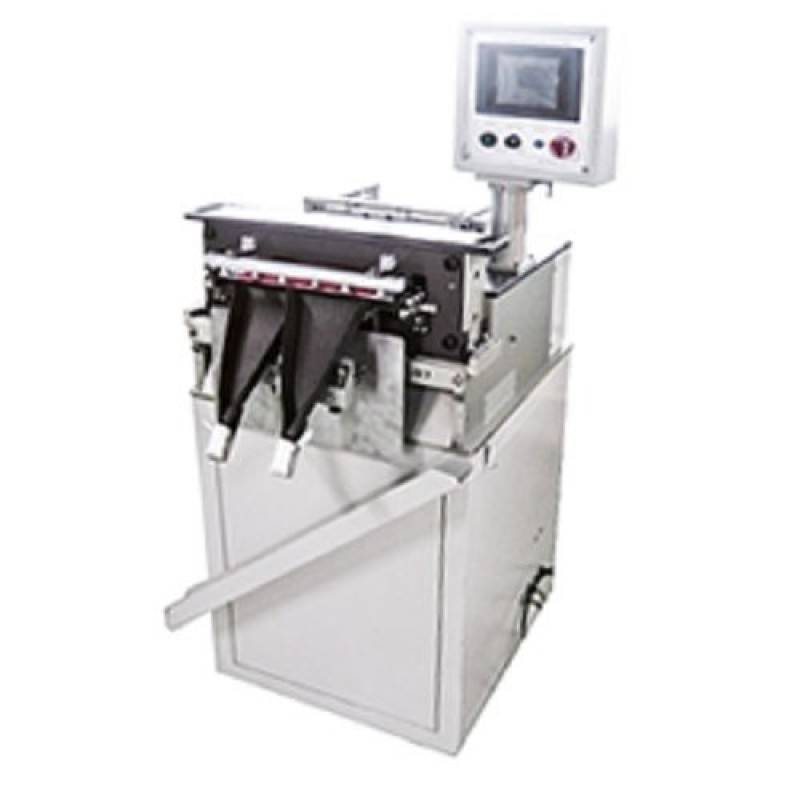

RAG-700 Auto Feeding Cell Slitter
Product Details :
Feeding
Method | Automatic |
Capacity | 720
cards/hr. |
Card
Width | Min.
25 mm |
Card
Length | Max.
320 cards |
Magazine
Capacity | Max.
300 cards |
Dimension | 900(L)
x 700(W) x 1400(H) mm |
Weight | 150
kg |
Current | 0.5KVA,5A |
Voltage | 110-220V |
Phase | Single
Phase |
Frequency | 50-60 Hz |
Description:
- Auto feeding rotary slitter is a high-speed automated slitting system that automatically loads, positions, and feeds each card for the rotary slitter to convert the card into final strips where the precisely cut strips get quickly and conveniently filled into a bottle (or a collection tray).
- the integration of the auto-feeding mechanism and the rotary slitting module allows for a simple yet very cost-effective solution that increases production efficiency as well as product quality due to the minimal hand-contact process.
features
basic features
options
- benefits of automatic slitting system- continuous non-stop operation for increased production output. (optional bottling & capping system can be integrated for the ultimate in output)- consistent cut accuracy ensures reliable product quality. - the nearly hands-free design reduces safety hazard and contamination
Additional Information:
- Item Code: RAG-700
- Production Capacity: 100
- Delivery Time: 30 DAY
