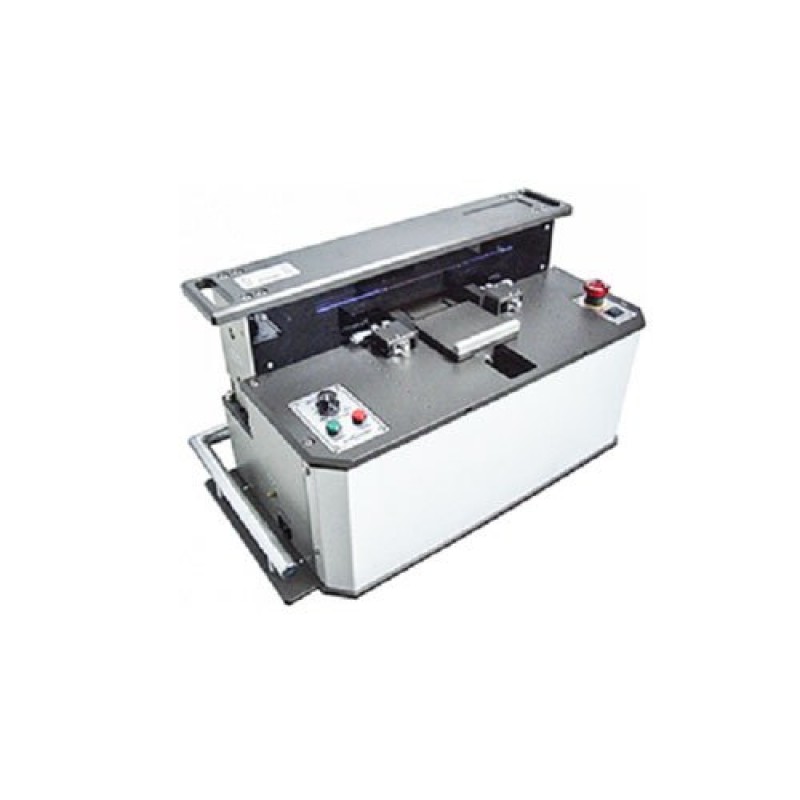

RCG-100 Rotary Slitter
Product Details :
Brand | Zeta
corporation |
Model
Name/Number | RCG-100 |
Row
Feeding Method | Manual |
Capacity | 720
rows/hour |
Row
Length | Max.
280 mm |
Row
Width | Min.
25 mm |
Dimension | 700(L)
x 500(W) x 450(H) mm |
Weight | 100
kg |
Current | 0.5KVA,5A |
Phase | Single
Phase |
Voltage | 110-220V
AC |
Frequency | 50-60 Hz |
Description:
- Rotary slitter is a robust cutting instrument which is designed to slit a wide range of rapid test materials, typically of finished cards/uncut sheets/glucose rows into final strip forms. This powerful unit equipped with rotary blade type features an ultra-fast cutting operation that yields high throughput as well as production efficiency.
- The simple yet highly efficient unit works by manually loading the card into the blades (card length and strip width determines blade count) for a swift slitting action. At less than a second, the cut strips are discharged onto a collection tray or down the chute (optional) for quick and convenient collection into a bottle. The blade head can be easily removed and swapped for cutting different width size.
(does not apply to rcg-100)
features options :
Quality & Performance
Brand
Zeta corporation
Model Name/Number
RCG-100
Row Feeding Method
Manual
Capacity
720 rows/hour
Row Length
Max. 280 mm
Row Width
Min. 25 mm
Dimension
700(L) x 500(W) x 450(H) mm
Weight
100 kg
Current
0.5KVA,5A
Phase
Single Phase
Voltage
110-220V AC
Frequency
50-60 Hz
- specially coated blades for improved lifespan.
- built-in anti-static ionizer reduces strip sticking issue due to static cling.
Easy To Use
- simple operation and low maintenance provides for hasslefree usage.
- easy removal of blade head for different cutting requirement
- (rcg-100 excluded).
- convenient qc access: as the cut strips are uniformly spread out on the collection tray, defects in strips (improper dispense coating, gluing, length, etc. ) can easily be identified for removal.
Additional Information:
- Item Code: RCG-100
- Production Capacity: 100
- Delivery Time: 30 Day
