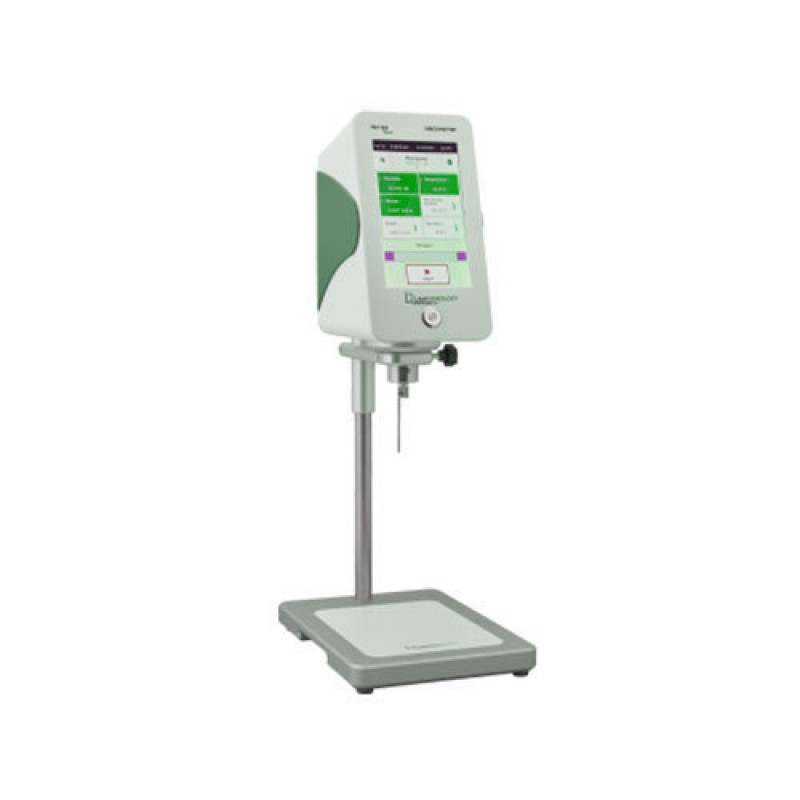

RM 200 Touch Rheometer

Product Details :

RM 200 TOUCH

Carry out your flow curves directly on your RM200 TOUCH rheometer, without needing to be connected to a computer, for precise quality control that is both simple and effective.

• TYPE OF INSTRUMENT: Rotating rheometer with imposed speeds
• SPEED RANGE :Unlimited number of speeds between 0.3 and 1500 rpm

• TORQUE RANGE : From 0.05 to 30 mNm | From 0.005 to 0.8 mNm (LR VERSION) | From 0.05 to 40 mNm (AC 115 VERSION)
• TEMPERATURE : The RM 200 TOUCH has a PT100 sensor which indicates temperatures between -50 °C to + 300 °C
• ACCURACY : +/- 1 % of the full scale
• REPEATABILITY: +/- 0,2 %
•  VISCOSITY RANGE : 1 - 540,000,000 mPa·s depending on the measuring geometry used
• DISPLAY : 7" Touch screen
• DISPLAY SETTINGS : Viscosity | Speed | Torque | Temperature | Time | Measuring geometry | Level of sensitivity | Date/ hour | Choice of viscosity units: cP or mPa·s | Language: French/English
• DISPLAY SETTINGS IN FLOW MODE: Plastic Viscosity | Yield Value | Thixotropy | Choice of model: Newton – Bingham – Casson - Ostwald
• SECURITY AND CONFIDENTIALITY : An "operator" function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code. There is also a protected mode that locks your measurement conditions
• SUPPLY VOLTAGE : 90-240 VAC 50/60 Hz
• ANALOG OUTPUT : 4 – 20 mA | Torque range to be defined by user
• PC CONNECTIONS : RS232 Port and USB

• PRINTER CONNECTION : USB Host Port

Save your flow curves and calculate your rheological parameters directly without needing a computer. Choose your attachment system tailored to your product constraints. Connect your RM 200 TOUCH to our temperature control systems (e.g.: EVA MS-R or DIN – PAGES 46 to 51). The RM200 TOUCH lets you set measuring times for thixotropic products. You can connect a USB printer. External control thanks to the optional RHEOMATIC P software. Achieve kinematic viscosity by inputting the density of your product
