ROTARY VACUUM EVAPORATED

Product Details :

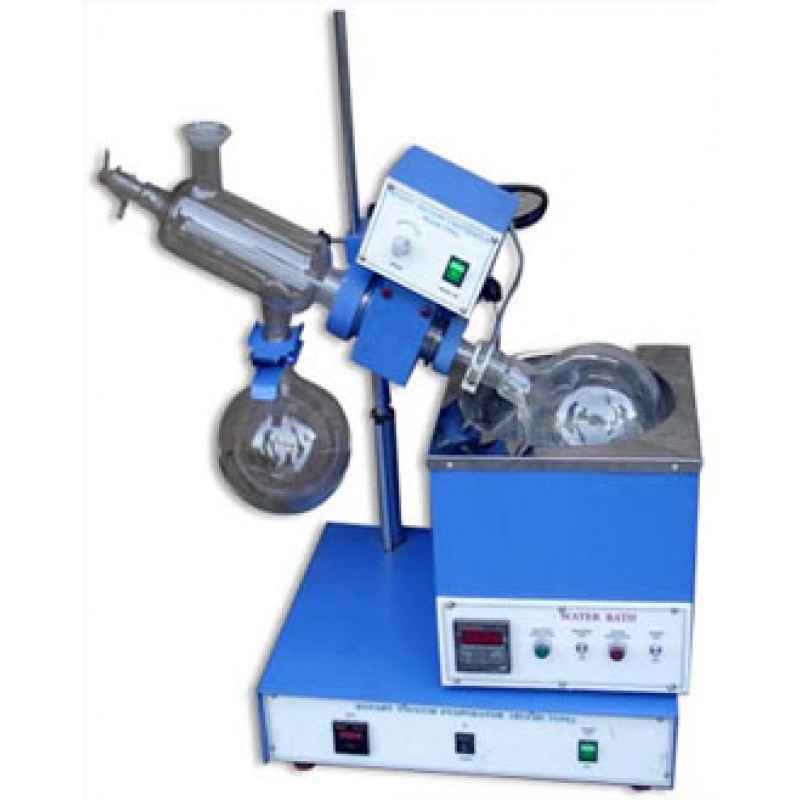

The Rotary Vacuum Evaporated apparatus consists of an evaporated flask rotated by non sparking induction motor in a heating water bath. Vacuum distillation of solvent at high and low temperature is achieved quickly and efficiently by use of a fixed speed motor, which prevents foaming and bumping of the liquid (solvent) into the evaporating flask and also distillation under controlled atmosphere. The evaporating flask is pear shaped to give a large surface area of evaporation and is clamped to a glass duct which goes through the drive unit and protrudes about 120mm into the condenser. The condenser is fitted with standard joint at the top and the bottom for receiver flask. The unit is fitted with a quick action jack.
