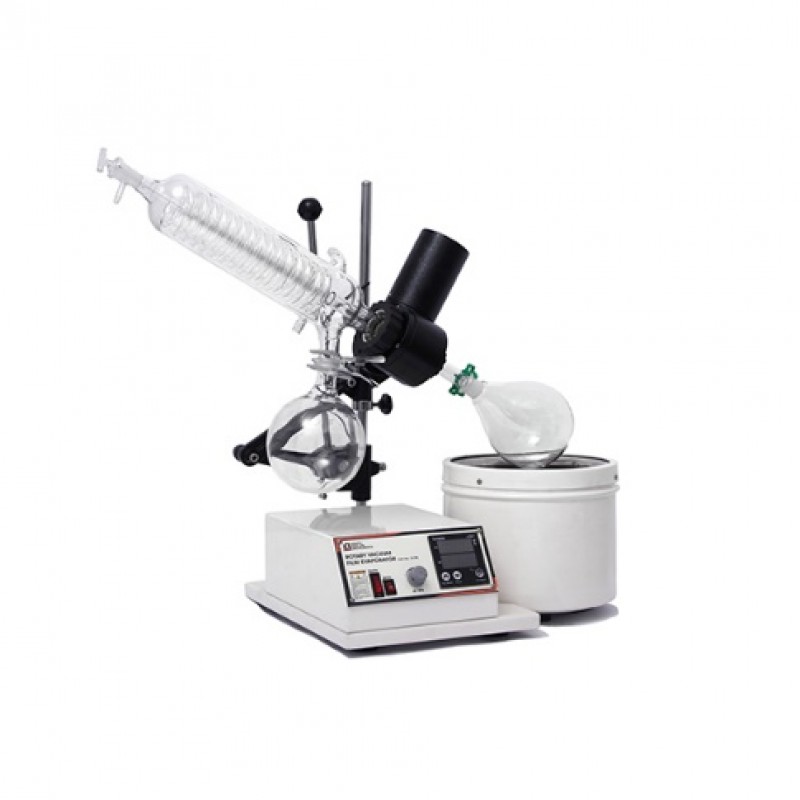

ROTARY VACUUM EVAPORATOR WITH HORIZONTAL CONDENSER

ROTARY VACUUM EVAPORATOR WITH HORIZONTAL CONDENSER

MODEL NO.: KI-2198

  • Kshitij Innovations brings to your work space a ROTAVAPTM state- of- the art technology, an approvingly labor- saving and a superior Rotary Vacuum Film Evaporators.
  • The technology comes in handy to separate solvents in a mixture and our product provides an exceptionally high bath volume of 4L. Keeping intricacies in mind, the product has been designed to make it available for a diverse range of organic, pharmaceutical, F&B, chemical and analytical labs.
  • Tailoring to present- day concerns, the product is constructed to save bench-space and unfailingly confirm to standards.
  • Model 2198 is detailed to have microprocessor-based controllers, programmable temperature controller, and with a vivid FND display, our evaporators stand out to give the finest and clear-cut precise performance.
  • The product’s modular design makes it best suited to work with KISILTM laboratory glassware. Manufactured keeping in mind the user’s convenience, we provide a 1-year warranty on this product.
  • Aiming at innovation, and in pursuit of advancing technology, our ROTAVAPTM Rotary Vacuum Evaporators are already establishing a niche in the market!



Specifications:





Model No.

KI- 2198-H

KI- 2198-2H

KI- 2198-3H

  Rotation Speed

  20-280

  20-280

  20-280

  Timer

  NA

  NA

  NA

  Display

  FND Display (Only for Temp.)

  FND Display (Only for Temp.)

  FND Display (Only for Temp.)

  Temperature

  Ambient to 180oC (Acc. ± 2o C)

  Ambient to 180oC (Acc. ± 2o C)

  Ambient to 180oC (Acc. ± 2o C)

  Keypad

  NA

  NA

  NA

  Bath & Heater Capacity

  4 Liters (1000 Watt)

  4 Liters (1000 Watt)

  4 Liters (1000 Watt)

  Boiling Flask Capacity

  1 L

  2 L

  3 L

  Drive System

  DC Motor

  DC Motor

  DC Motor

  Power

  220 V ± 10% 50 Hz

  220 V ± 10% 50 Hz

  220 V ± 10% 50 Hz

  Dimensions

  815 x 408 x 890mm

  815 x 408 x 890mm

  815 x 408 x 890mm

  Weight

  19.525 KG

  19.525 KG

  19.525 KG
