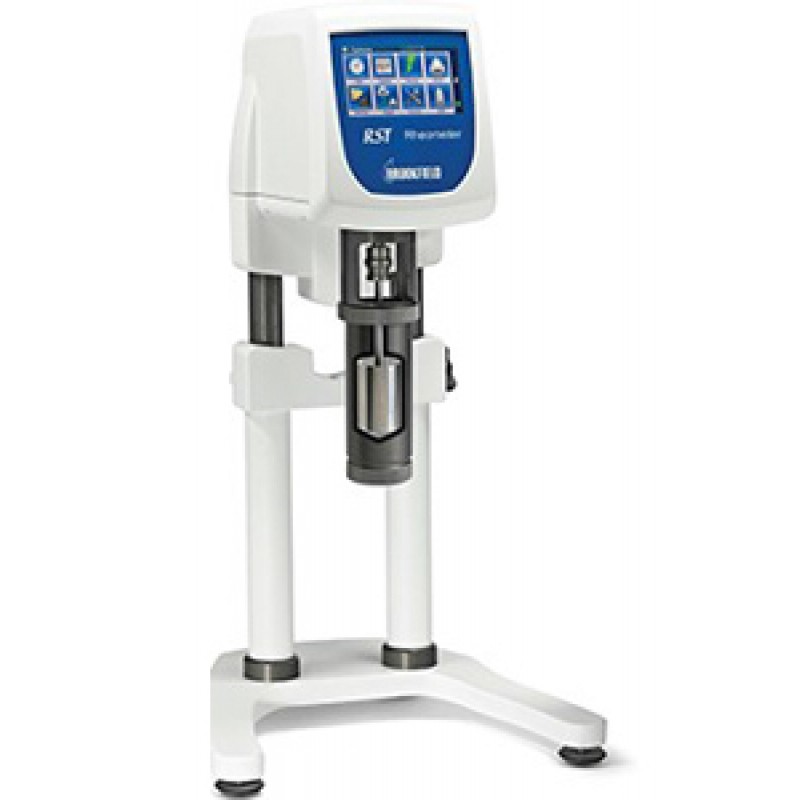

RST Coaxial Cylinder Rheometer
Product Details :
Rheological evaluation through controlled stress and controlled rate measurements offer superior viscosity profiling, thixotropic response, yield stress determination and creep analysis. The RST-CC Rheometer offers powerful flow characterization tools including a ramp, loop, and single point testing. A wide range of shear rate, shear stress, and torque provide flexible flow analysis including creep and yield measurement. The RST-CC Rheometer is designed to accommodate the high throughput required of quality control laboratories providing cost-effective, worry-free operation for a variety of laboratory applications.
VISCOSITY RANGE cP (Pa•s) | SPEEDS | ||
MODEL | Min | Max | RPM |
RST-CPS Cone/Plate | 0.0006 | 814K | 0.01-1.3K |
RST-CPS Plate/Plate | 0.002 | 2.49M | 0.01-1.3K |
FEATURES AND BENEFITS
- Controlled stress/rate operation to analyze comprehensive flow behavior
- Spindle barcode for auto spindle recognition
- Quick and easy automatic or manual gap setting
- Rapid temperature control of plate with Peltier option for quick profiling of viscosity vs. temperature
- User-friendly LCD touch screen with graphical display
- 11 memory slots for structured multi-step test programs
- Auto spindle identity recognition
- Quick connect coupling for easy spindle attachment
- ersion in bath or external circulation using the FTKY3 water jacket
