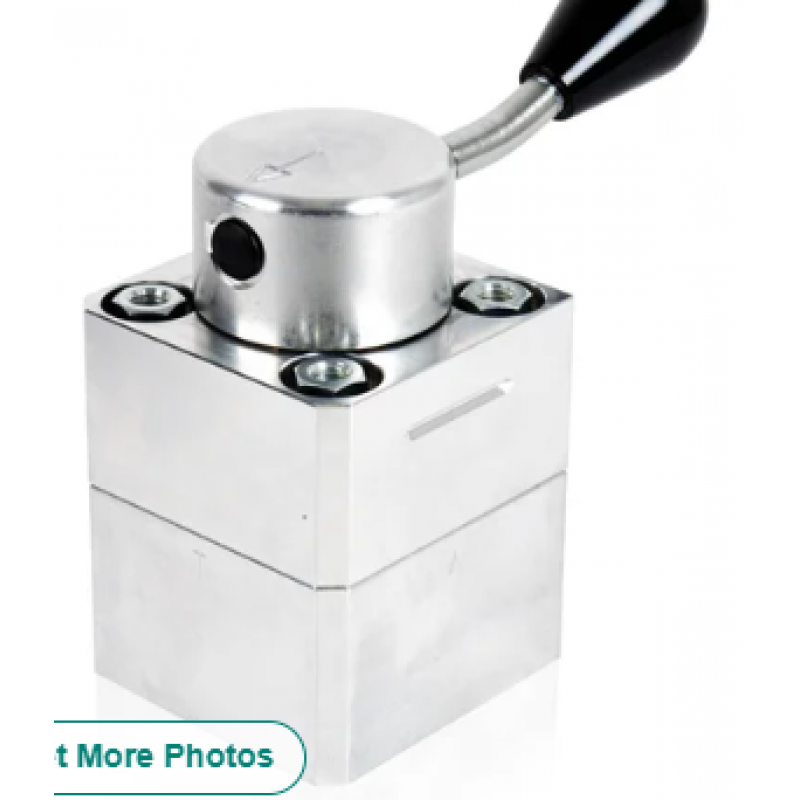

Rotary Directional Control Valve
Product Details:
Rotary Directional Control Valves
180 Series / 280 Series.
 Hydraulic rotary shear directional control valves are the ideal solution for control of hydraulic actuators on mobile and industrial applications where internal leakage must be minimised.

Maximum Pressure: Up to 700 bar, 10,000 psi
Maximum Flow: Up to 38 lpm, 10 US gpm
BSP/NPT/SAE ports, or manifold ported to CETOP3/D03/PCD types.
180 series-Steel components in aluminium body
280 series  Steel components in 316 Stainless Steel body. Nitrile rubber (NBR) Seals
Maximum tank port pressure 17 bar, 260 psi
Over 4500 possible configurations

The valves utilise an optically flat rotary spool with pressure loaded seats, to ensure either zero or near zero leakage. They have excellent tolerance to contaminates.
