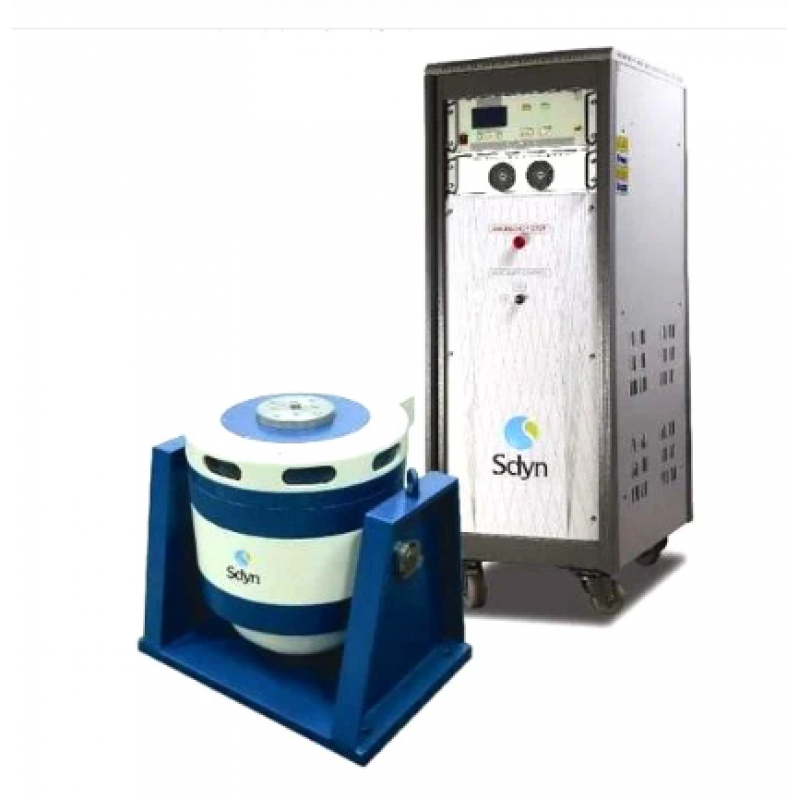

SEV 140 Electrodynamic Shaker
Product Details:
Armature Diameter | 140mm |
Moving element mass | 3.5 kg |
Acceleration | 60g |
Velocity | 1.4m/sec |
Dimensions | 585x415x535 mm |
Technical Specification
System Performance : | |
SEV 140 Shaker, DSA Amplifier | SEV140-DSA 2K |
Armature Diameter | 140mm |
Sine force (peak) | 200Kgf (440lbf, 2kn) |
Random force (rms) | 140Kgf (310 lbf, 1.4kn) |
Acceleration (sine) | 60g |
Velocity (sine peak) | 1.4m/sec |
Displacement | 25mm (1.0 inch) |
Axial Resonance | 3600HZ |
Useful Frequency range | DC to 4000hz |
Safety Compliance | System complies and marks to the international safety requirement WRT CE |
Protection Interlocks | Mains input over & under Voltage, Over Current, Loss of input phase, Over Temperature amplifier & shaker, Cooling flow, Field fail, user safety interlock if specifically required by customer |
