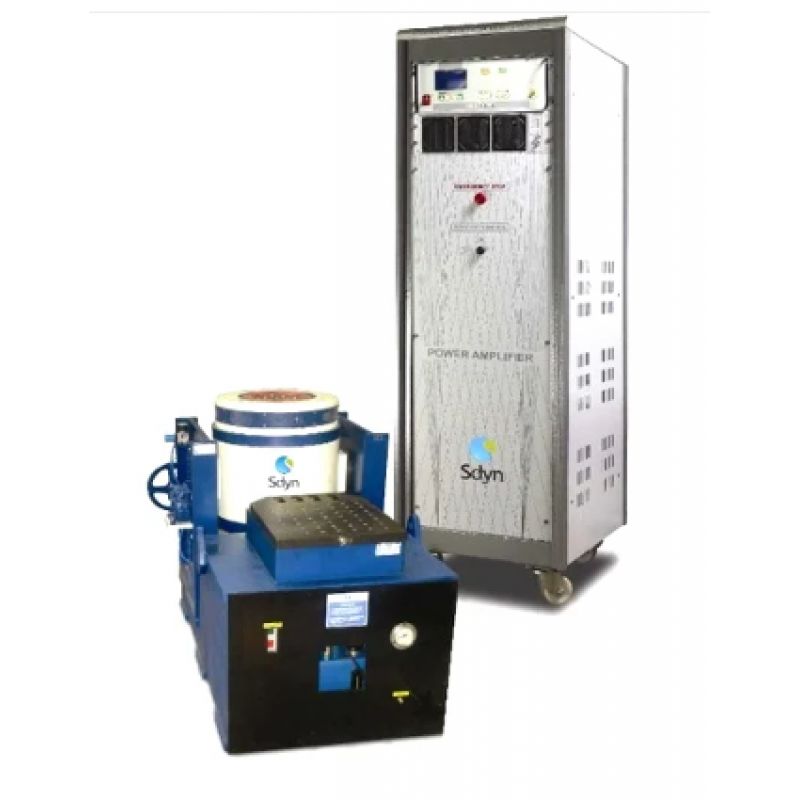

SEV 180 Electrodynamic Shaker
Product Details:
Axial Resonance | 3200HZ |
Useful Frequency range | DC to 3500hz |
Moving element mass | 8 kg |
Internal load capability | 150 kg |
Suspension axial stiffness | 3.2 kg /mm |
Dimensions | 725x500x795 mm |
Technical Specification:
| System Performance : | |
SEV 180 Shaker, DSA Amplifier | SEV180-DSA 4K |
Armature Diameter | 180mm |
Sine force (peak) | 400Kgf (880lbf, 4kn) |
Random force (rms) | 280Kgf (650 lbf, 2.8 kn) |
Shock Force | 800Kgf (1760 lbf, 8 kn) |
Acceleration (sine) | 50g |
Velocity (sine peak) | 1.6m/sec |
Displacement | 38mm (1.5 inch) |
Axial Resonance | 3200HZ |
Useful Frequency range | DC to 3500hz |
Safety Compliance | System complies and marks to the international safety requirement WRT CE |
Protection Interlocks | Mains input over & under Voltage, Over Current, Loss of input phase, Over Temperature amplifier & shaker, Cooling flow, Field fail, user safety interlock if specifically required by customer |
SEV 180 Electrodynamic Shaker
- Views: 75
- Vendor: Saraswati Dynamics Private Limiited – Bangalore
- Vendor Type: Manufacturer, Supplier
- Product Code: SDP0000020
- Availability: In Stock
- ₹0
Seller information
Saraswati Dynamics Private Limii
- Saraswati Dynamics Private Limiited – Bangalore
- Haridwar, India
- Business Type :Manufacturer, Supplier
