System Performance :

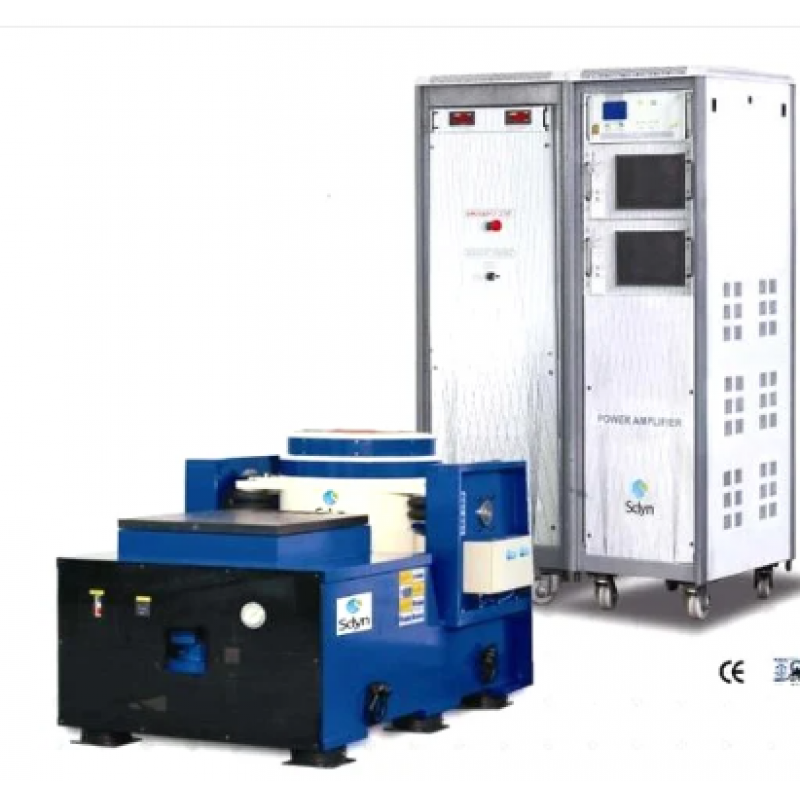

SEV 360 Shaker, DSA Amplifier	SEV360-DSA 36K
Armature Diameter	360mm
Sine force (peak)	3000Kgf (6600lbf, 30kn)
Random force (rms)	3000Kgf (6600lbf, 30kn)
Shock Force	6000Kgf (13200lbf, 60kn)
Acceleration (sine)	85g
Velocity (sine peak)	1.8m/sec
Displacement	51mm (2 inch), optional 76mm
Axial Resonance	2600HZ
Useful Frequency range	DC to 2800hz
Safety Compliance	System complies and marks to the international safety requirement WRT CE
Protection Interlocks	Mains input over & under Voltage, Over Current, Loss of input phase, Over Temperature amplifier & shaker, Cooling flow, Field fail, user safety interlock if specifically required by customer

Shaker Characteristics:
Moving element mass	35 kg
Internal load capability	350 kg
Suspension axial stiffness	8 kg /mm
Suspension cross axial stiffness	400 kg/mm
Stray magnetic field (150mm above table)	<1 mT (10 gauss)
Cooling air flow (blower system)	1800 cfm
Compressed air (utility required at site)	6 bar/87 PSI
Shaker body mass	3500kg
Dimensions (LxWxH)	1420x885x1165 (mm)
