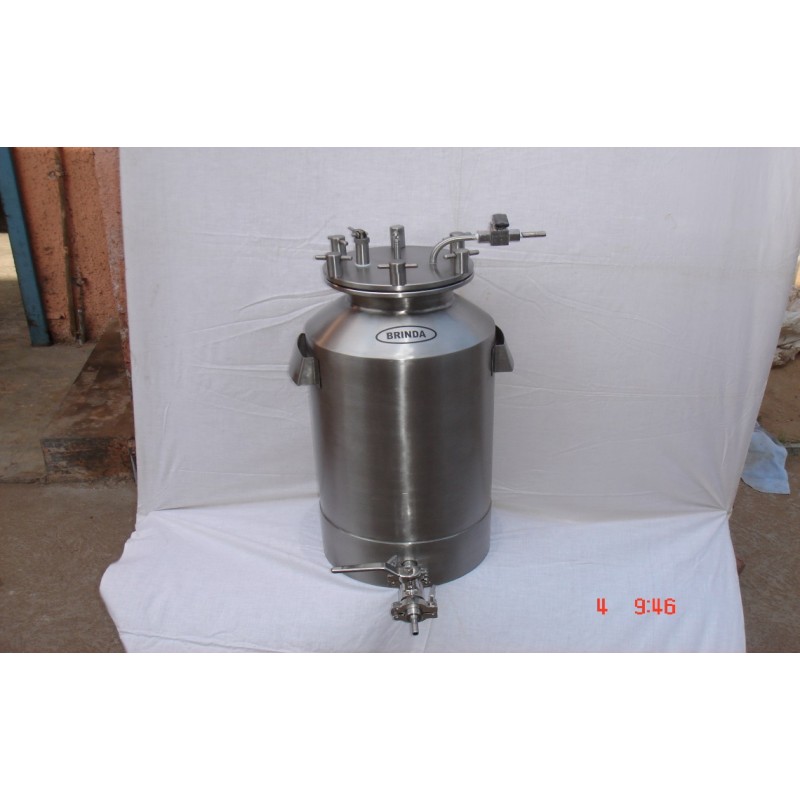

At Stainless Process we manufacture a full range of custom sanitary stainless steel process equipment in accordance with our customer’s specifications and quality standards.
Functional specifications:
- Volume: 2 to 1,500 liters nominal capacity
- Material: stainless steel 304,316.
- Surface finish: ≤ 0.2 µm
- Surface polishing: mechanical and/or electro-chemical
- Pressure: pressure less / -1/10 bar (g)
- Temperature: -20 °C to 200 °C
- Cleaning options: CIP / SIP
- Design: Single, double and triple wall design, heat able, insulated
- All vessels can be supplied as stand-alone equipment (stationery or mobile) or as automated process units delivered as fully-functional modules
Salient Features: (Made As per Requirement)
- No stagnant point, internal surfaces are 0.28 Ra finish.
- Flat, flat sloping, cone or dished vessel bottom
- All contact parts /surfaces made out of SS 316 / SS 316L quality.
- Electro polished from inside.
- The vessel will be jacketed, insulated and cladded by SS 304 sheet.
- Spray ball for CIP /SIP system.
- Flush bottom valve.
- Vary speed drive.
- Steam/Electrical heating.
- If required, Load cell/capacitance type level indicator will be provided to measure the volume inside Tank.
- Additional ports
- Additional manways
