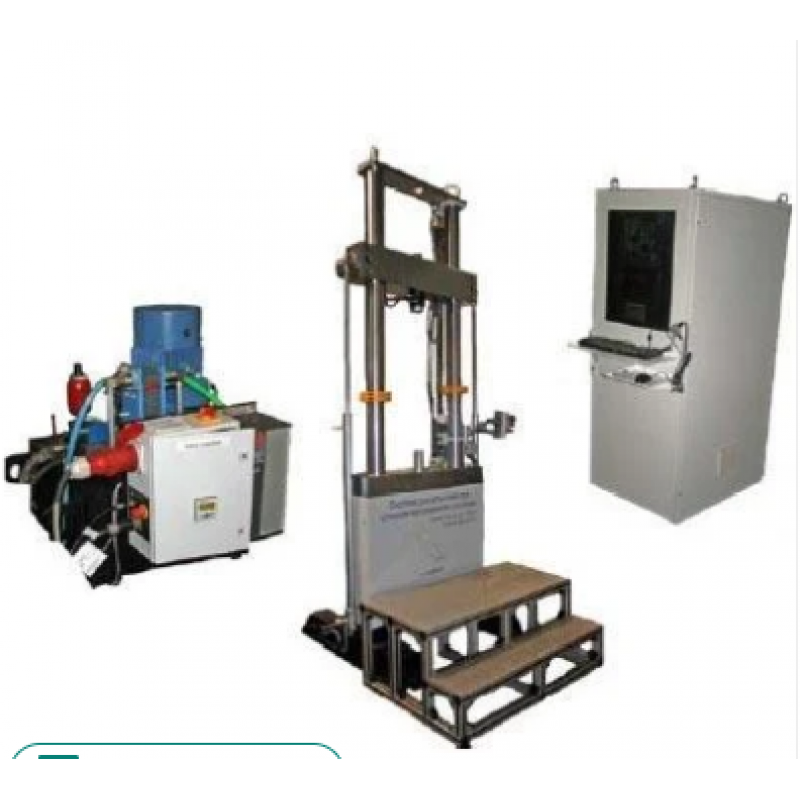

Servo Dynamic Universal Testing Machine
Product Details:

Material	Mild Steel
Automation Grade	Automatic
Power	Electric
Computer Support	Yes
Service Location	Pune
Country of Origin	Made in India

Servo (Dynamic) Hydraulic Universal Testing Machines which are used in a variety of tests like tension compression flexure fatigue (low cycle fatigue / high cycle fatigue / fatigue crack propagation ASTM E647), fracture mechanics (K1c per ASTM E399, J1c, CTOD per ASTM E-1290), damping properties and vibration testing.
Our test systems are designed for conducting tests at ambient temperature, elevated temperature (high temperature fatigue characterization) and low temperature.
Test speed range slow strain rate testing (typical of corrosion interaction)(1 x 10 -7 /s strain rate) high strain rate testing (flow deformation studies).(150 /s true strain rate)
The testing machines are fitted with servo-controlled pumps that come in two versions: hard-wired autonomous control with electronic setting of operating high and low pressure. Operating pressure is set with the convenience of on-screen graphics user interface.

Technical features of our hydraulic materials test systems are:
Metals, composites and polymers
Low cycle fatigue (as per ASTM E606)
Fracture mechanics including fatigue crack growth (as per ASTM E647 and E1820).
Room temperature and high temperature testing
Testing in corrosive media
Fully self -contained test system packaged for easy relocation and movement
Load frame on vibration isolators
No additional utilities required. Simply plug into 3- phase mains and commence testing
10 to 50 kN force and 50 to 100 mm stroke rating
0 to 100 Hz cycling frequency. Vibration isolators for quiet operation
Variety of add- on fixtures and transducers, all supported by single - platform packaging: self- aligning hydraulic LCF grips, extensometers, pulsed, reversible p.d. unit, etc
