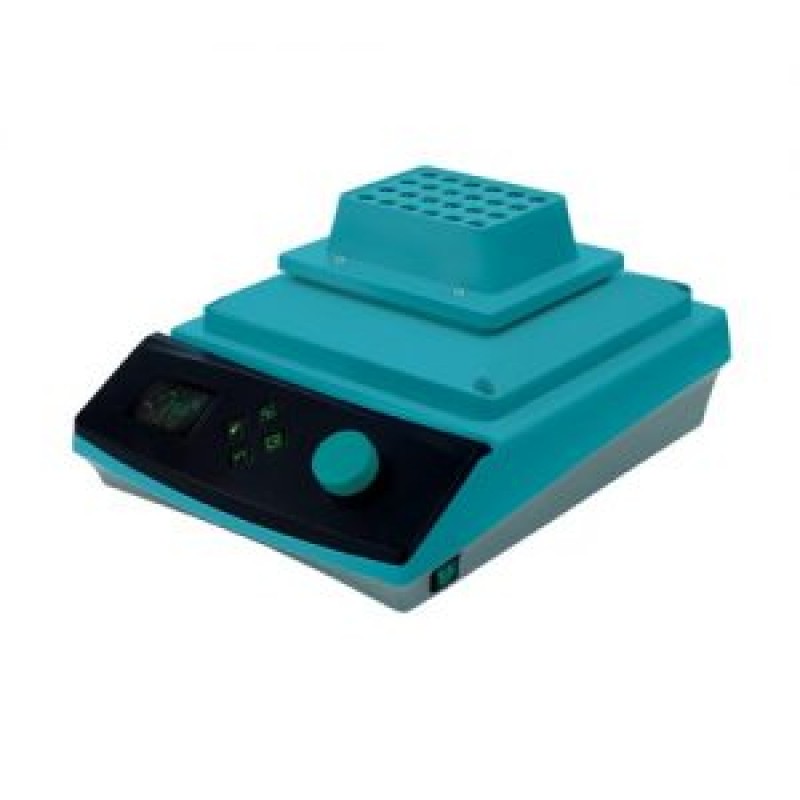

CBS-350 Heating Shaker
Product Features:
Useful for a variety of molecular biology applications
Interval mix function in program mode can be properly set according to user’s experimental conditions
Performance
- Microprocessor PID control ensuring consistent shaking motion and precision accuracy
- Wide speed range from 150 to 1500 rpm (block dependent)
- Automatic temperature calibration
Convenience
- Bright VFD display with responsive touch buttons
- Memory function of programs allowing relevant parameters
- (such as temp., rpm, time) of each program step to be stored
- – Up to 10 programs allowed for memory storage
- – Up to 10 steps allowed for each program
- – Interval mix function
(continuous switching between shaking and phasing)
Advanced dual wait on/off timer modes
- - Users can set the timer to start immediately after the timer setting or only after reaching the set temp
- Optimal heat transfer is achieved by the tight coupling design of the main body and the corrosion-resistant anodized aluminum blocks
Safety
- Self-diagnostic function identifying errors
- Its polypropylene main body is highly chemical-resistant and easy-to-clean
- Low-profile design with rubber feet for minimal vibration and noise
- Over-current protection
Product Description :
| Model | CBS-350 | ||
| Control system | PID feedback control | ||
| Display | VFD (0.1 0C resolution) | ||
| Temperature | Range (℃ / ℉) | Amb. +5 to 100 / 41 to 212 | |
| Fluctuation at 80℃ (±℃ / ℉) | 0.3 / 0.54 | ||
| Variation at 80℃ (±℃ / ℉) | 0.7 / 1.26 | ||
| Heating power (W) | 360 | ||
| Safety | Over temp. | Heating plate | |
| PCB | |||
| Over current | Current limit protection | ||
| Shaking system (WxDxH) | Motion type | Orbital | |
| Speed range (rpm) | 96-well tube block | 150 to 1500 | |
| 0.5 ml tube block | 150 to 1000 | ||
| 1.5 ml tube block | 150 to 1000 | ||
| 15 ml tube block | 150 to 900 | ||
| Ø12 tube block | 150 to 850 | ||
| O13 tube block | 150 to 850 | ||
| 50 ml tube block | 150 to 800 | ||
| Orbit size (mm / inch, dia.) | 2 / 0.08 | ||
| Dimension | Body 1) (mm/inch) | 249 x 325 x 120 / 9.8 x 12.8 x 4.7 | |
| Net weight (kg / Ibs) | 8.3 / 18.3 | ||
| Electrical requirements (230V, 50 / 60Hz) | 1.7A | ||
| Cat. No. | AAHJ4015K | ||
