Geared Stirrers
Product Details:
The Geared Stirrers are specially designed for a broad spectrum of applications requiring low speed & high torque for stirring of viscous fluids & materials. These stirrers are used in routine laboratory work, research and development, QA analysis and sample preparations. The user has a choice of different types of drive i.e. AC Drive, AC/DC Drive & PMDC with stepless speed regulations for continuous variation of speed as per requirements.
PMDC GEARED STIRRERS
These stirrers have PMDC motors with hollow shafts in output spindle (except RQG-121/D), permitting length adjustment with ability to mix high viscosity liquids such as heavy oils, lubricants & paints. Stirrers have uniform speed control with digital RPM indicator which gives speed read outs, valuable for applications where process validation and reproducibility is required.
SALIENT FEATURES:
- PMDC motor for powerful stirring.
- Reliable performance even in continuous use./li>
- Hollow shaft in Geared models permitting height adjustment.
- Stirring shaft SS 316; Retort Rods SS 304.
AC GEARED STIRRERS
Specially designed AC geared stirrers for continuous mixing in viscous materials and solvents that change viscosity during mixing. Heavy duty brushless motor produces no spark.
SALIENT FEATURES:
- Stirring shaft length-adjustable in hollow output spindle.
- Stirring shaft SS 304
Technical Specifications | ||||||||
Models | Stirling Shaft | Impeller | Motor | Speed (rpm) | Stirring Capacity | Digital Speed Indicator | ||
---|---|---|---|---|---|---|---|---|
¸ x length (mm) | Min | Max | Type ol Fluid | Max Volume | ||||
Geared Stirrers | ||||||||
RQG-121/D | 6 x 250 | AXIAL TURBINE | PMDC | 50 | 550 | LIGHT OIL | 5 LTRS | |
RQG-126/D | 8 x 450 | RADIAL TURBINE | PMDC | 50 | 750 | PAINT/GEAR OIL | 15 LTRS | |

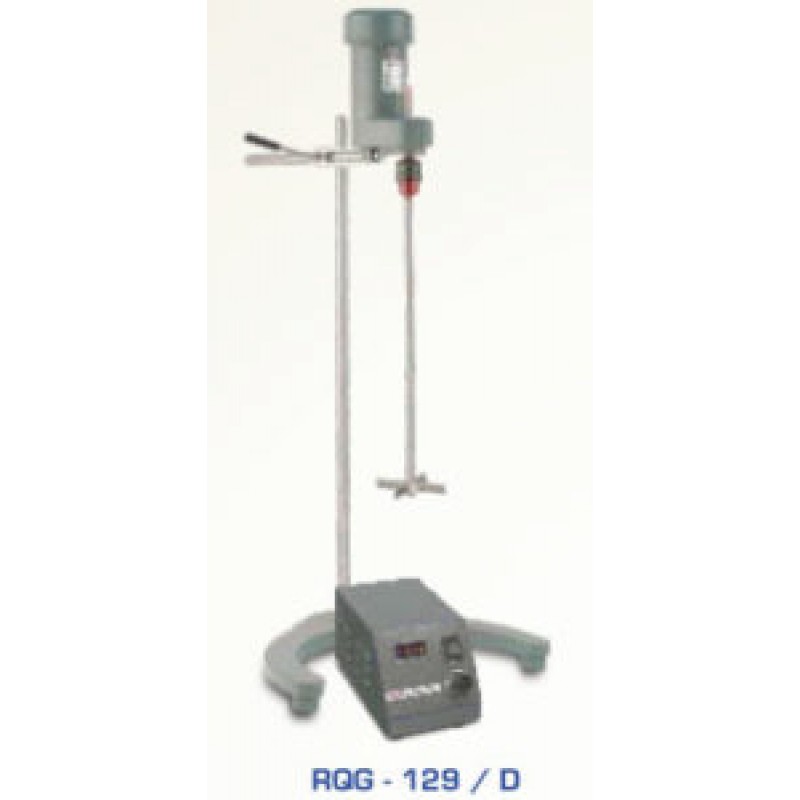

RQG-129/D | 10 x 550 | RADIAL TURBINE | PMDC | 50 | 550 | PAINT/GEAR OIL | 25 LTRS | |
RQ-128/D | 8 x 310 | 4 CROSS BLADE | AC/DC 1/20 HP | 50 | 150 | LIGHT OIL | 3 KGS | |
RQ-128B/D | 8 x 310 | 4 CROSS BLADE | AC/DC 1/8 HP | 50 | 150 | LIGHT OIL | 7 KGS | |
RQ-128D/D | 12 x 450 | 4 CROSS BLADE x 2 | AC/DC 1/2HP | 50 | 280 | LIGHT OIL | 20 KGS | |
RQG-128A/D | 8 x 450 | RADIAL TURBINE | AC BRUSHLESS | 50 | 550 | WATER | 10 LTRS | |
RQG-128C/D | 10 x 450 | RADIAL TURBINE | AC BRUSHLESS | 50 | 500 | PAINT/GEAR OIL | 20 LTRS |
