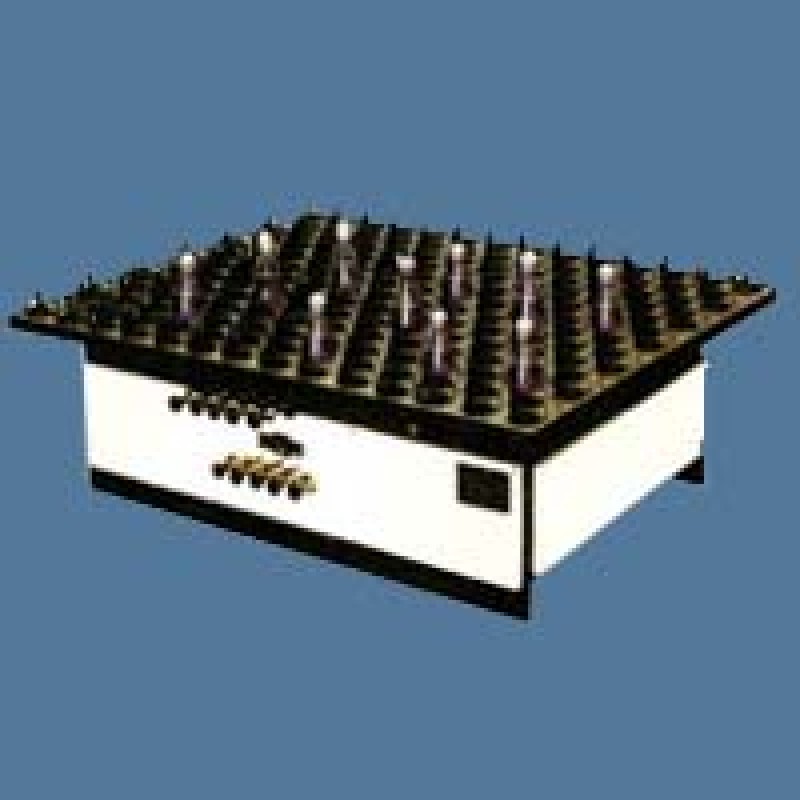

Heavy Duty Single Tier Rotary Shaker
Product Details :
| Capacity | : | 169 clamps of 250 ml flasks or 116 clamps of 500 ml ( select any one ) Threaded holes can be made hold assorted clamps |
| Platform Size | : | 54" x 44" approx. |
| Overall Dimension | : | D x W x H = 45" x 54" x 21" approx |
| Rotary Stroke | : | 25 mm fixed or 38 mm or 50 mm or 70 mm ( select any one ) |
| Speed | : | 50 - 250 RPM, Controlled by AC Frequency Drive |
| Indication | : | Digital |
| Electric Motor | : | 0.5 HP AC motor. |
| Mechanism | : | Five Crankshaft Assembly |
| Power Required | : | 230 V 50 Hz Single Phase, 15 Amps Stabilized |
| Light Grouting | : | Required at the base of the equipment |
