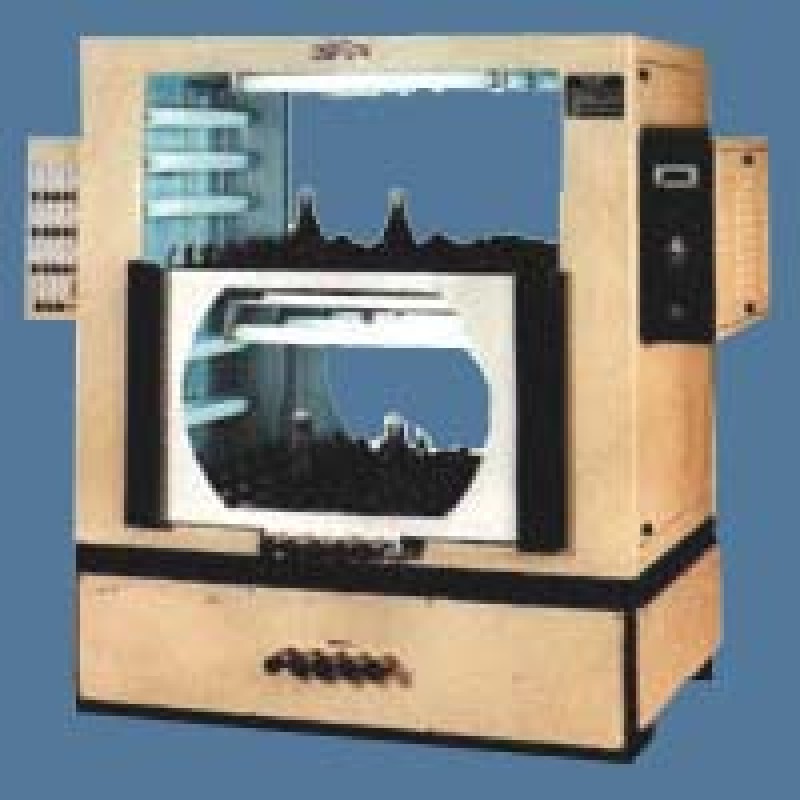

Heavy Duty Two Tier Illuminated Shaker
Product Details :
| Capacity | : | 85 Clamps of 250 ml on each tier. Total 170 clamps. |
| Platform Size | : | 32" x 32" approx. |
| Overall Dimension | : | D x W x H = 34” x 60” x 53” approx |
| Rotary Stroke | : | 38 mm fixed |
| Speed | : | 50-150 RPM controlled by AC Frequency Drive |
| Indication | : | Digital |
| Mechanism | : | Five Crank Shaft Assembly |
| Electric Motor | : | 0.5 H. P. AC Motor |
| Power Required | : | 230 V, 50 Hz Single Phase 15 Amps stabilized |
| Illumination | : | By LED tubes / fixture with electronic ballast |
