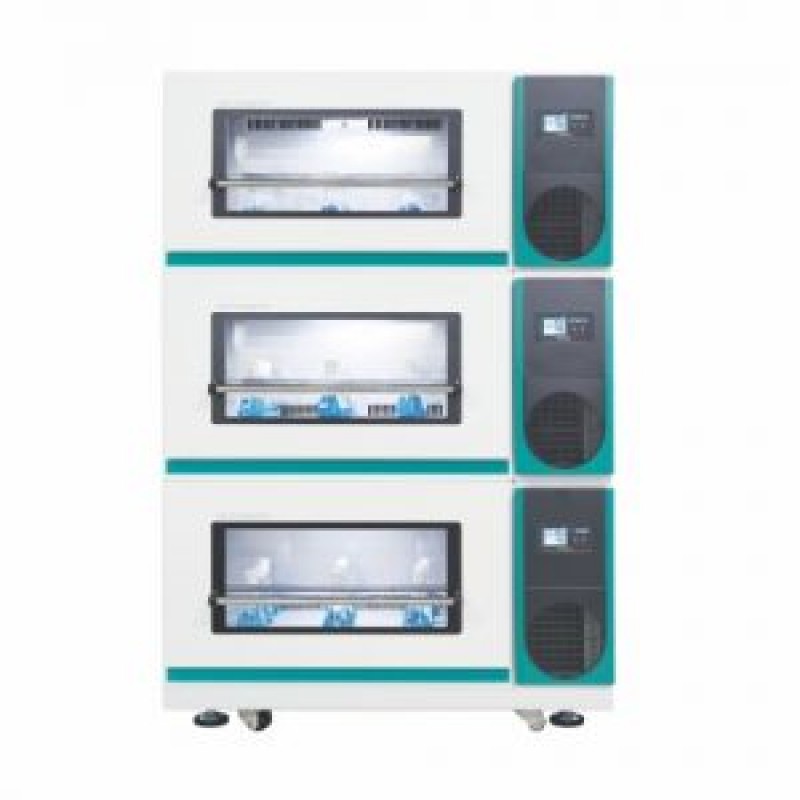

Incubated Shakers (Stackable)
Product Features:
- Stackable up to three units for maximum utilization of lab spaces
- Multi-purpose incubated shakers feature a wide range of temperature control and large chamber volume
Advantages of Stackable Model
- Large shaking capacity chamber allows user to freely organize different size of samples
- 198L chamber can accommodate six of 4L flasks and also thirty nine of 250ml flasks
- You can make the capacity triple, if you stack three units
- Maximize your space with our triple stackable incubated shaker
- Highly recommended for users who want to maximize limited space. Have three units in your lab while taking up minimal space
- In addition, high rpm is still guaranteed even when you stack up 3 units
- Lift up opening door and slide out platform enables easy sample handling
- Door is opened upward and stayed open for hands-free handling. Slide type universal platform let you access to all samples, even ones placed at the back
- Optional stand is available and highly recommended for comfort use. Setting your incubated shaker at your height let you feel totally relaxed when you use it anytime(optional)
Performance
- Temperature range
- Ambient +10°C to 80°C for ISS-7100 / 7200
- Ambient -20°C (Min. 4) to 80°C for ISS-7100R / 7200R
- Competitive high shaking speed up to 400 rpm (Stackable up to 250rpm)
- from 30 to 400 rpm (stackable : 30 to 250) for ISS-7100(R)
- from 30 to 300 rpm (stackable : 30 to 200) for ISS-7200(R)
- Orbital shaking motion in various diameters
- 4mm for ISS-7100(R)
- 8 mm for ISS-7200(R)
- Microprocessor PID control
- Three point temperature calibration / Automatic tuning
- Wide speed range even with heavy workload
- Ideal DD(Direct Drive) brushless motor and triple cam system support heavy load, quiet, maintenance free operation and deliver high torque at high speeds and smooth rotation
- Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity
- Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock
- Pleasant test environment by the smooth acceleration and deceleration control
- Smooth start and smooth stop function prevents chemical spills from flasks or test tubes
- High-velocity fan ensures uniform temperature distribution and rapid thermal recovery after door open
- Air-tight silicone door seal to provide excellent temperature uniformity
Convenience
- Intuitive touch screen LCD controller with easy icons and logical menus
- Easy-set digital timer for shaking operation. (1 min. to 999 hr. 59 min.)
- Wide sample monitoring
- Clear observation of samples without affecting inner chamber’s environment thanks to the transparent viewing window with bright LED lamps
- Repetitive task can be easily performed as the platform stops where it starts
- Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process
- Built-in electrical outlet with a safety cover inside the chamber
- Corrosion resistance stainless steel interior
- Easy-access drain system with a quick disconnect valve offers great convenience to clean up of spills
- Built-in RS-232 port and USB port for external control and data collection
- The unit comes with retractable foot caster, beneficial for easy mobility during installation or relocation
Safety
- Automatic run after power interruption
- Temperature and shaking speed deviation alarm
- Over-current protection
- Triple independent temperature monitor system
- Temperature deviation alarm (High/Low)
- Electronic temperature limiter (High/Low)
- Mechanical over-temperature limiter (High)
- Environment-friendly CFC-free refrigerant (for ISF-7100R / 7200R)
Product Description :
Model | ISS-7100 | ISS-7100R | ISS-7200 | ISS-7200R | |
Temperature | Range (℃ / ℉) | Amb. +10 to 80 / Amb. +18 to 176 | Amb. -20 (Min. 4) to 80 / Amb. -36 (Min. 7.2) to 176 | Amb. +10 to 80 / Amb. +18 to 176 | Amb. -20 (Min. 4) to 80 / Amb. -36 (Min. 7.2) to 176 |
Fluctuation at 37℃ (±℃ / ℉) | 0.1 / 0.18 | ||||
Variation at 37℃ in flask (±℃ / ℉) | 0.5 / 0.90 | ||||
Refrigerator (Hp) | – | 1/ 6Hp | – | 1/ 6Hp | |
Shaking system | Motion type | Orbital | |||
Amplitude size (mm / inch, dia.) | 25.4 / 1 | 50.8 / 2 | |||
Speed range (RPM) | 30 to 400 (stackable2) : 30 to 250) | 30 to 300 (stackable2) : 30 to 200) | |||
Accuracy | ±1% of set speed (>100rpm) / ±1 (≤100rpm) | ||||
Timer | 1 min. to 999 hr 59 min. | ||||
Max. load (kg / Ibs) | 20 / 44.1 at 400 rpm 15 / 33.1 at 250 rpm (stacked) 20 / 33.1 at 200 rpm (stacked) | 20 / 44.1 at 300 rpm 15 / 33.1 at 200 rpm (stacked) 20 / 44.1 at 150 rpm (stacked) | |||
Dimension (W×D×H) | Volume (L / cu ft) | 198 / 7.0 | |||
Platform (W×D) (mm / inch) | 755×520 / 29.7×20.5 | ||||
Interior (W×D×H) (mm / inch) | 809×624×393 / 31.9×24.6×15.5 | ||||
Exterior 1) (W×D×H) (mm / inch) | 1310×996×755 / 51.6×39.2×29.7 | ||||
Net weight (Kg / lbs) | 365 / 804.7 | 375 / 826.7 | 365 / 804.7 | 375 / 826.7 | |
Electrical requirements (230V, 50 / 60Hz) | 50Hz, 3.7A | 50Hz, 5.6A | 50Hz, 3.7A | 50Hz, 5.6A | |
Cat. No. | AAH238132K | AAH238232K | AAH239132K | AAH239232K |
