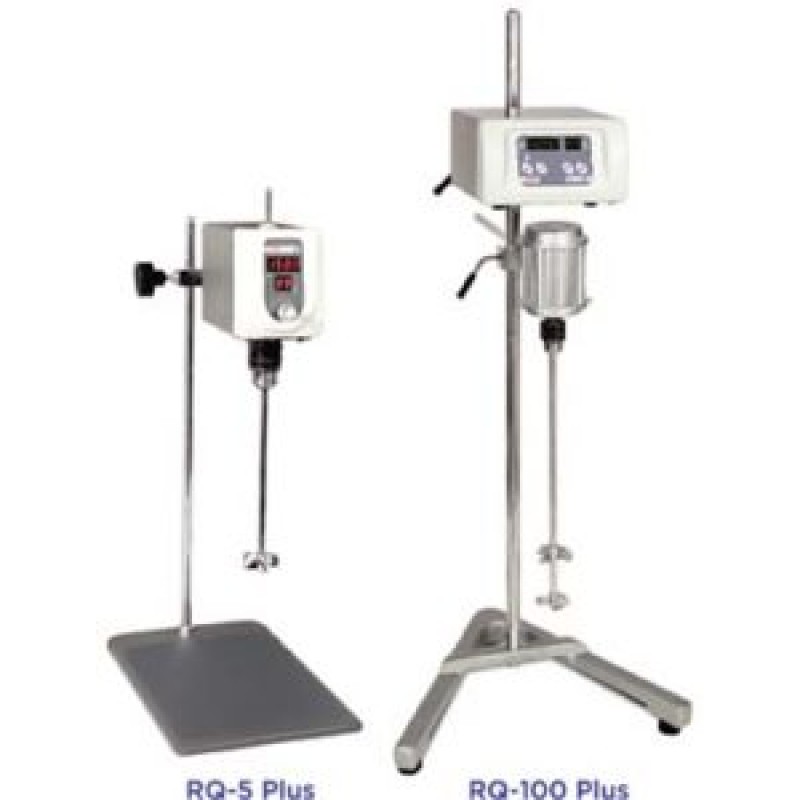

Lab Stirrers, Impellers and Magnetic Coupling
Product Details:
LABORATORY STIRRERS
REMI presents the next generation of laboratory stirrers for stirring / mixing etc of chemical. pharmaceutical, food and cosmetic products. The equipment basically consists of body. Chuck, stainless steel blade propeller and a U-type stand.
SALIENT FEATURES
- High torque even at low speeds
- Monitoring of set & actual speed
- Wide range of impellers
- Advanced Stirrers with microprocessor technology
- Advanced Stirring speed control through VFD
- Constant speed even with change of load / Voltage
- Easy -to- read display of set & actual parameters
- Last parameter recall. Ideal for repetitive processes
- Accepts shafts up to 13mm
- Motor protection in case of continuous overload
- Stopper for protection of vessel & shaft
- Special base design for topple free operation
Technical Specifications | ||
Features | RQ-5 Plus | RQ-100 Plus |
|---|---|---|
Max. stirring capacity (Water) (Liters) | 5 | 100 |
Motor Type | BLDC | AC Induction, 3 phase |
Motor rating | 10 watt | 100 watt |
Speed range [rpm] | 50-1500 | 100-4000 |
Speed display | LED | LED |
Timer | 0 to 99 Minutes | 0 to 99 Minutes |
Motor Overload protection | LED light flash, auto stop | LED light flash, auto stop |
Chuck (mm) | 1.5 to 10 | 1.5 to 13 |
Stirring Shaft x length (mm) | 8 x 250 | 12 x 500 |
Impeller Type / (mm) | Axial Turbine / 36 | Pitched x 2 / 65 |
Dimensions [Wx D x H] (mm) | 115 x 180 x 155 | 320 x 285 x 620 |
Stand length (mm) | 600 (“2″™) | 1220 (“4″™) |
Weight [kg] | 6.5 | 19 |
Power [W] | 10 watt | 175 watt |
