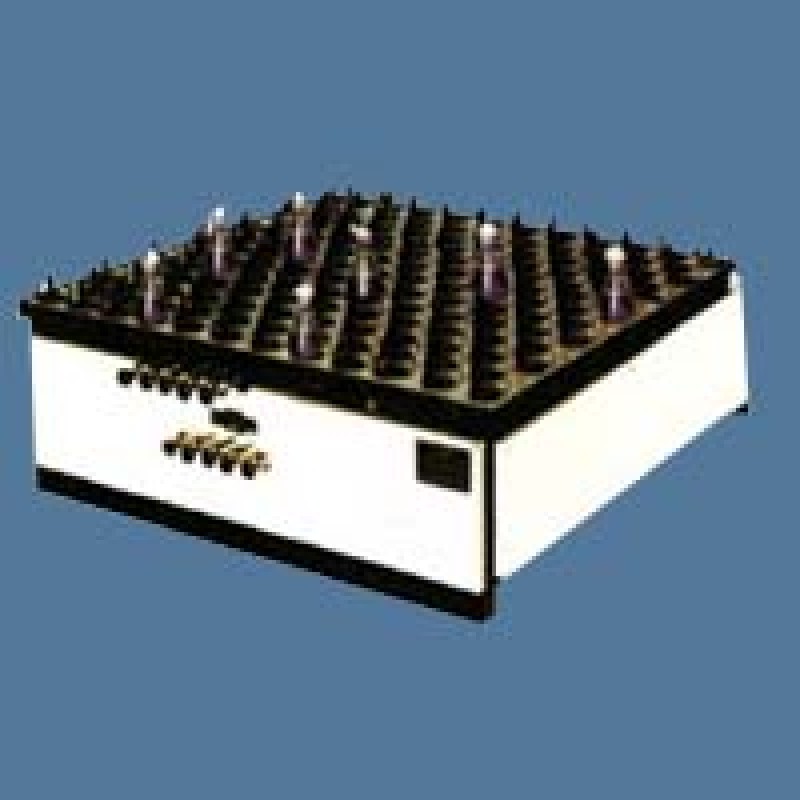

Medium Duty Single Tier Rotary Shaker
Product Details :
| Capacity | : | 105 clamps of 250 ml or 65 clamps of 500 ml ( select any one ). Threaded holes can be made to hold assorted clamps. |
| Platform Size | : | 36" x 36" approx. |
| Overall Dimension | : | D x W x H = 36” x 36” x 30” approx |
| Rotary Stroke | : | 38 mm fixed or 50 mm fixed or 70 mm ( select any one ) |
| Speed | : | 50 – 250 RPM controlled by AC Frequency drive |
| Indication | : | Digital |
| Electric Motor | : | 0.5 HP AC motor |
| Mechanism | : | Five Crankshaft Assembly |
| Power Required | : | 230 V, 50 Hz Single Phase, 15 Amps Stabilized |
| Light Grouting | : | Required at the base of the equipment |
