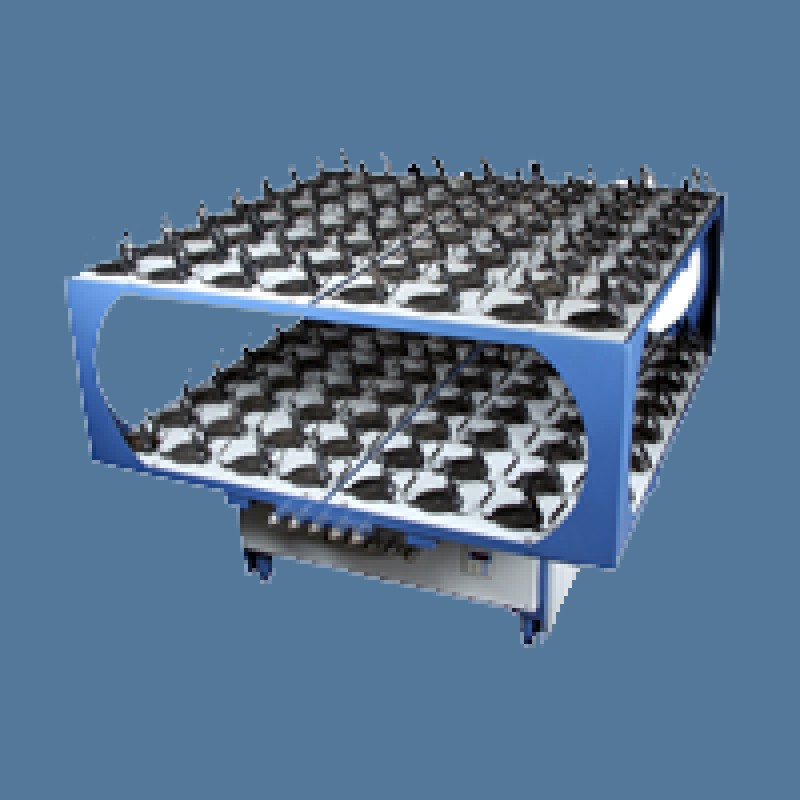

Super Heavy Duty Two Tier / Dual Rotary Shaker ( Model B )
Product Details :
| Capacity | : | a) Upper tier carries 64 flasks of 2000 ml. Lower tier carries 64 flasks of 2000 ml. OR b) Upper tier carries 49 clamps of 3000 ml. Lower tier carries 81 clamps of 1000 ml ( select any one ) |
| Platform Size | : | 60” X 60” approx. |
| Overall Dimension | : | D X W X H = 60” X 60” X 48” approx |
| Rotary Stroke | : | 38 mm or 50 mm fixed ( select any one ) |
| Speed | : | 50 - 160 RPM Controlled by AC Frequency Drive |
| Indication | : | Digital |
| Mechanism | : | Five Crankshaft Assembly |
| Electric Motor | : | 0.5 HP AC Motor |
| Power Required | : | 230 V 50 HZ, Single Phase, 15 amps stabilized |
| Light Grouting | : | Required at the base of the equipment. |
