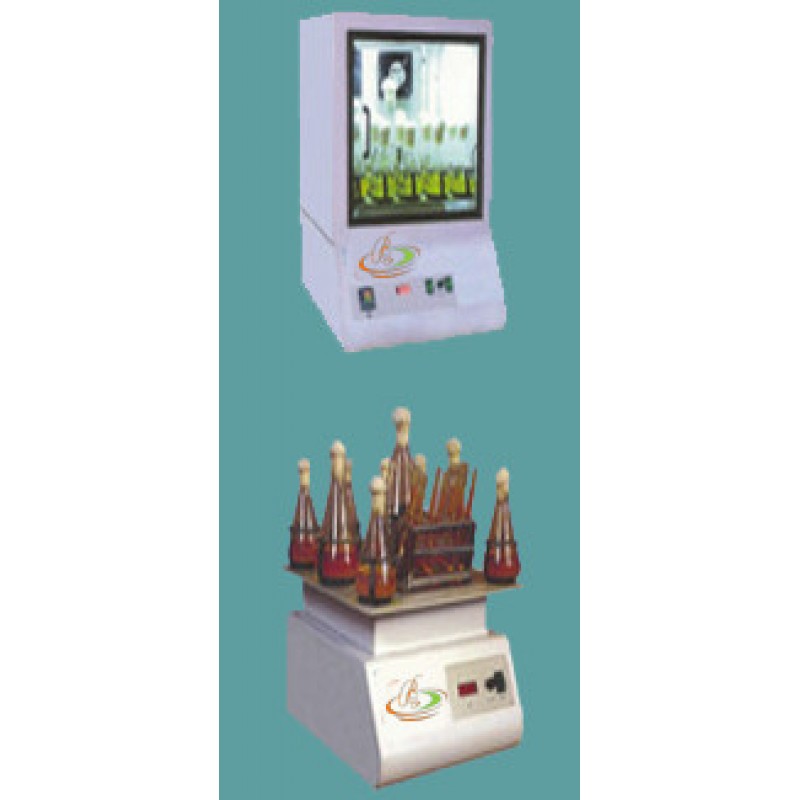

Zonotech Orbital Shaker
TECHNICAL SPECIFICATION
- These Heavy Duty Shakers with the latest technology have been recently developed to give better flexibility, ease of operation and performance, than ever before.
- The unit has a base assembly fabricated from heavy mild steel sections. The simple and sturdy design makes the units suitable for continuous operation.
- Compact counterbalanced drive mechanism ensuring high stability and reliability even in continuous operation &uneven load distribution.
- Stepless Microprocessor frequency control ensures a gentle start and maintains preset speed.
- Brushless induction drives motor practically maintenance-free.
- Variable speed from 30RPM to 300RPM ±1RPM.
- Digital display of RPM.
- Automatic restart at preset speed in case of power failure.
- Temp. control by Microprocessor PlDcontroller(optional).
OPTIONAL
- Clamps for Holding Conical Flask 100 ml., 250 ml., 500 ml., 1000 ml., 2000 ml.
- Mechanical Timer 0-120 min, for timing the shaking operation.
- Digital Timer of 99 hrs., for timing the shaking operation.
- Chamber illumination with florescent tube (1 No.)
(for Model BRS-100 H & 50H)
- Chamber illumination with U.V. Tube (1 No.)
(for Model BRS-100 H & 50H)
- Cyclic timer for illumination control. (for Model BRS-100 H & 50H}
Voltage Stabalizer for above.
MODEL | BRS-100V | BRS-100H | BRS-100H | BRS-50V |
Shaking Speed | Variable microprocessor controlled | |||
Speed Indication | Digital | |||
Speed Range | 30-300 Rpm ±1Rpm | |||
Orbital dia. | 19 mm | |||
Platform Size | 42×42 cm. | 35×35 cm. | ||
Shaking tray | Universal platform to accomodate interchangeable clamps of assorted sizes for different capacity of clonical flasks. | |||
Temp Range | Ambient+5°c-60°c | |||
Temp Accuracy | ±0.1-0.4°c | |||
Temp Control | Microprocessor PID controlled | |||
Power Supply | 220 volts,50 hz,AC single phase supply. |
