Single Axis Position Controllers
Product Details:
Brand | Customized |
Current | 1A |
Phase | Triple Phase |
Voltage | 220V AC |
Usage/Application | All |
Mounting Type | Screw Mount, Panel Mount |
Country of Origin | Made in India |
The Single Axis Position Controllers offered by us is highly demanded by the clients for their availability in varied sizes. Our products are recommended by the clients for their precise use. The Single Axis Position Controllers highly demanded by the clients for their high strength.

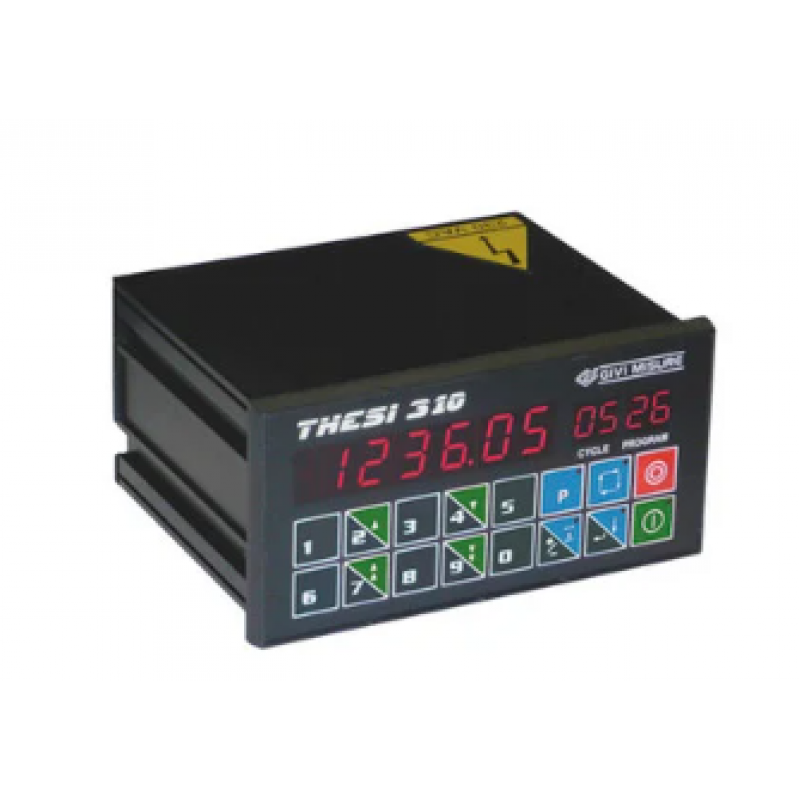

THESI 310 position controller can control shifting and positioning of one axis in 3 different operating modes:
Manual or semi-automatic by keyboard
Automatic on the basis of a memorized program
Memorization of up to 99 PROGRAMS with 20 positions each. Up to 99 repetitions can be matched to each position (the program cycle is composed by the position and its respective repetitions). 90 Vac to 230 Vac power supply or 24 Vac power supply with selector
Manufactured with 16 bit microcontroller, 256K FLASH and 8K RAM memory in single-chip mode
Opt isolated inputs
Start, stop, increase cycle, deviation, preset
Voltage-free contact outputs
Ok position, enabling with control interlock
Feed/back, slow/fast
± 10 Vdc analog output
Feed/Back, Slow/Fast
Can be installed on bench or built in
