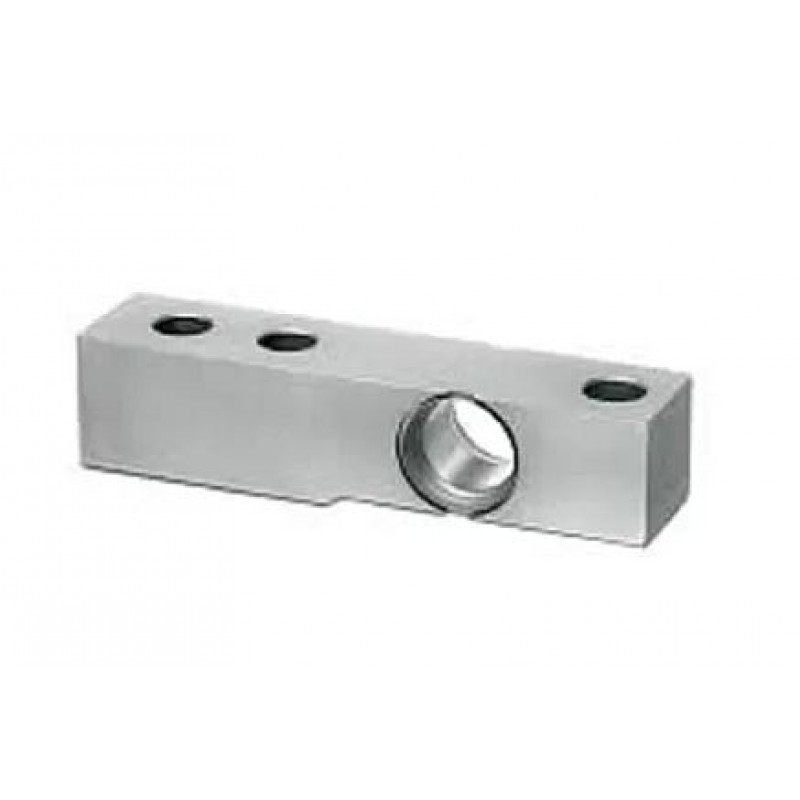

Single Ended Beam Load Cell
Product Details:
| Model | CZL 803 |
| Type | Single Ended Shear Beam |
| Capacity | 2 Ton |
| Material | Alloy Steel |
| Ingress Protection | IP65 |
| Application | Hopper Scales |
| Features | Hermetically sealed |
| Output Sensitivity(FS) | 3.0 +/- 0.003 mV/V |
| Creep Error (30 minutes) | +/- 0.02% FS |
| Temperature Effect on Zero | +/-0.02% FS/DegC |
| Temperature Effect on Output | +/-0.03% FS/DegC |
| Zero balance | +/- 1% FS |
| Maximum Safe Overload | 150% FS |
| Ultimate Safe Overload | 200% FS |
| Recommended Excitation Voltage | 9 to 12V DC |
| Input Resistance | 350 +/- 5 Ohms |
| Output Resistance | 350 +/- 5 Ohms |
| Insulation resistance at 50V DC | >= 5000 M Ohm |
| Compensated Temperature Range | -10 to +40 Deg C |
| Operating Temperatue Range | -20 to +70 Deg C |
Being a leading firm in this industry, we are deeply engaged in offering a high-quality range of Single Ended Shear Beam Load cell
Features:
- Alloy Aluminum material
- Good quality
- High accuracy
- Low costs
- Silicon adhesive sealed
- surface anodized.
APPLICATIONS:
- Bench scales
- Platform scales
- electronic weighing devices
Single Ended Beam Load Cell
- Views: 97
- Vendor: Labteknik
- Product Code: CZL 803
- Availability: In Stock
