We are one of the manufacturer, supplier, trader and exporter of Soil Permeability Test Apparatus. These offered products are as per super quality and long life. We offer products in affordable price.
Product Description:The apparatus is used for the laboratory determination of permeability of soils using a constant or a variable head. This test is recommended for soils with co-efficient of permeability in the range of 10 x -3 to 10 x -7cm/sec. The maximum particle size of the soil which can be tested in the mould is 10 mm.
Features:
- High efficiency
- Smooth performance
- Low maintenance cost
Specification :
The equipment comprises one each:
- Gun metal mould, 100mm I.D. x 127 mm high x 1000 ml volume.
- Gun metal mould extension collar, 100 mm dia x 60 mm high for the above mould.
- Gun metal Drainage base plate with a recess for a porous stone and with an outlet valve.
- Metallic clamping ring.
- Gun metal drainage cap (top plate with a recess for a porous stone and fitted with an inlet valve and an air release valve.) Gun metal dummy plate to serve as a false bottom during compaction. Porous stone for drainage cap. Porous stone for base plate. Set of glass stand pipes approximately 6 mm dia., 10 mm dia and 20 mm dia mounted on a wooden board. Each glass tube is longer than 1 meter and has a serrested end at the bottom.
- To read water head 2 Nos. meter scales are fixed between the tubes.
- A length of 3 meter long rubber tubing with pinch cock is also supplied.

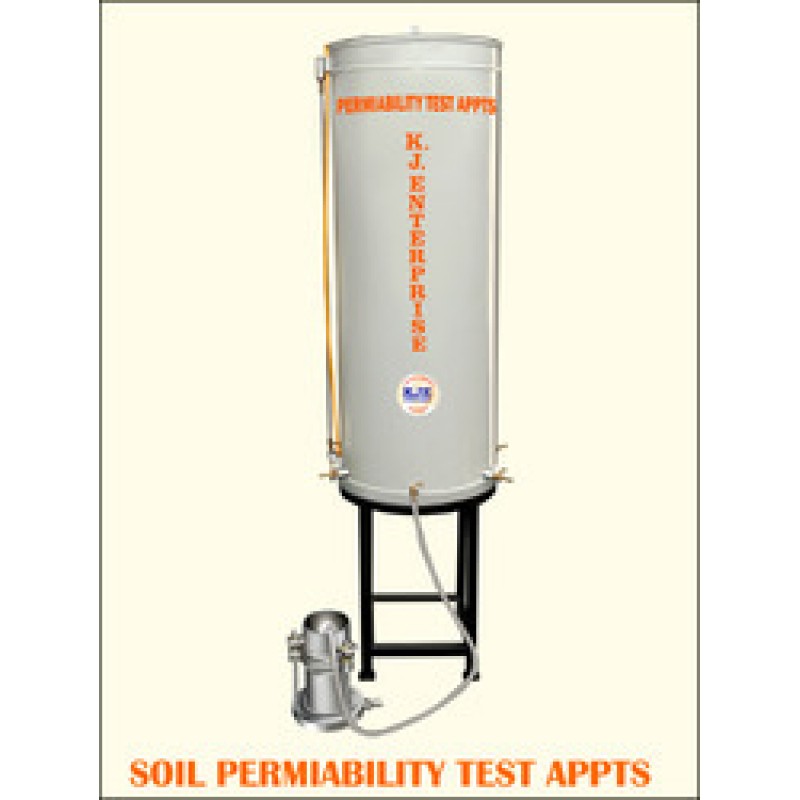

Soil Permeability Test Apparatus
