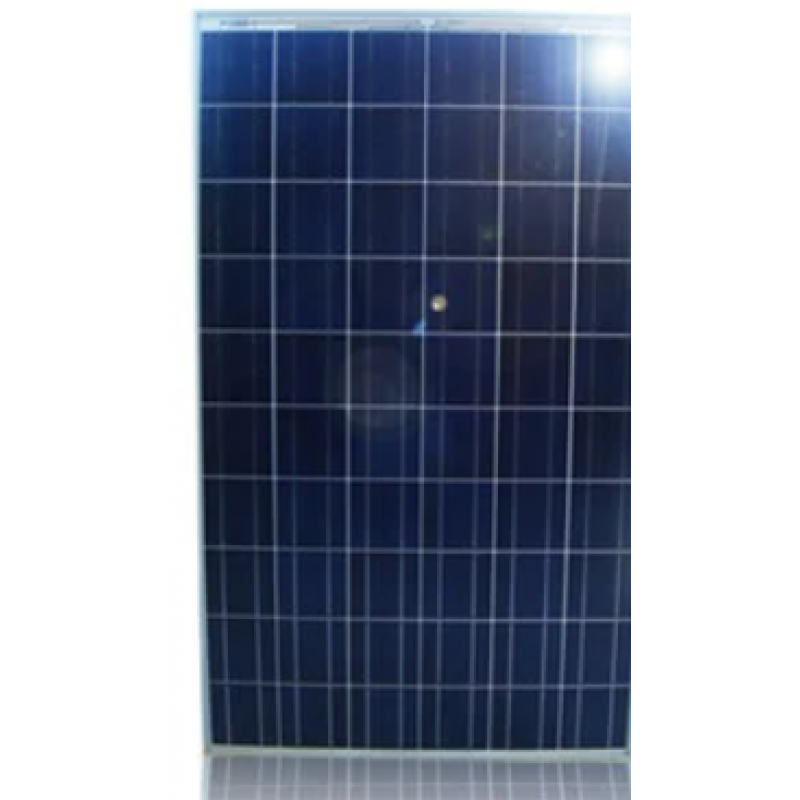

Solar PV Modules
Product Details:
Typical Electrical Characteristics
Type TITAN/JJPV/KOTAK URJA M6-60 OR EQUIVALENT
MaxPower@STC Pmp (W) 220 225 230 235 240 245 250
Power Tolerance (W) 0 to 4.9Wp or ±2.5%
Max Power Voltage Vmp(V) 28.8 29.19 29.61 30.02 30.23 30.40 30.72
Max Power Current Imp (A) 7.64 7.71 7.77 7.83 7.94 8.06 8.14
Open Circuit Voltage Voc (V) 36.42 36.78 37.08 37.32 37.56 37.68 37.80
Short Circuit Current Isc (A) 8.07 8.15 8.25 8.34 8.44 8.56 8.63
Electrical parameters tolerance ±5%
Max System Voltage VDC 1000
Number, type and arrangement of cells 60, Multi-Crystalline, 10 x 6 Matrix
Cell Size 6” x 6” / 156 x 156 mm
• TUV Certifications:EN IEC 61215 : 2005
EN IEC 61730-1 : 2004 / 2007
EN IEC 61730-2 : 2004 / 2007
Mechanical Characteristics
Junction Box ZJRH / BizLink SunBolts / H S
Type of connector MC4 / BizLink SunBolts/ H S
Dimensions (L x W x Th) mm 1657 x 987 x 42
Weight Kg 19.0
No. of Drain Holes in Frame 12
Glass Type and Thickness 3.2 mm Thick, Low iron, Tempered
Packing Configuration
Packing Configuration 24 Modules in each pallet
1 * 20 Ft 144 Modules
1 * 40 Ft STD 336 Modules
1 * 40 Ft HQ 672 Modules
Absolute Ratings
Operating Temperature (°C) -40 ~ 85
Storage Temperature (°C) -40 ~ 85
