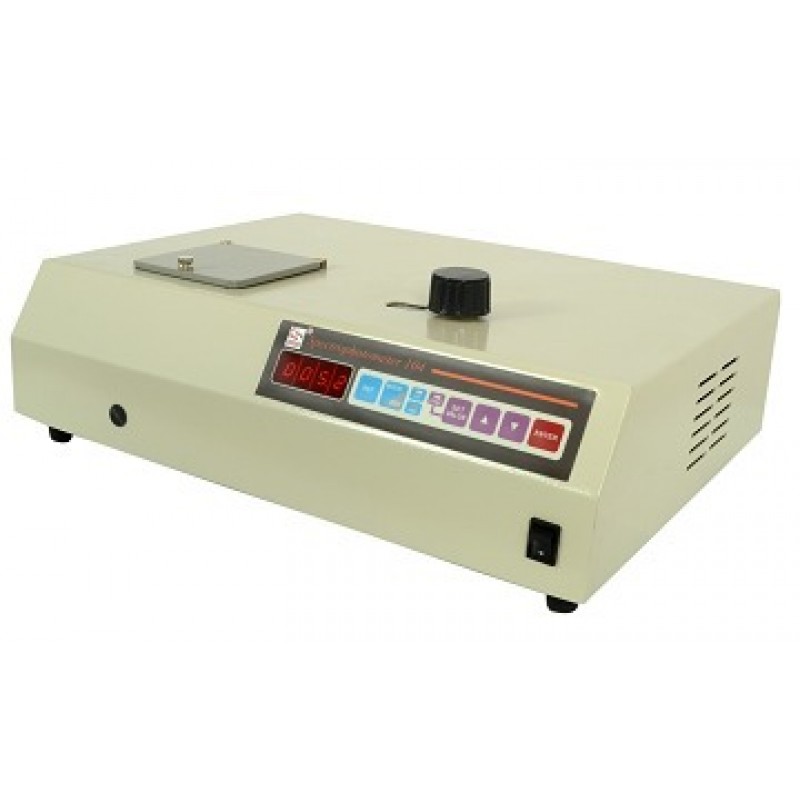

104 Micro Controller Based Vis. Spectrophotometer
Product Details:
| Minimum Order Quantity | 1 Piece |
| Wavelength Range | 340 to 960 nm |
| Model | 104 |
| Application | Laboratory Use, Industrial Use |
| Detector | Wide Range Silicon Photodiode |
| Weight | 6.5 Kg (Approx) |
| Wavelength Accuracy | +/-5 nm |
| Brand | Systronics |
| Wavelength Display | Dial |
| Spectral Bandwidth | 10 nm |
| Photometric Accuracy | +/-0.005 Abs at 1.000 Abs |
| Photometric Resolution | 0.1%T,0.001 Abs |
| Photometric Readout | 4 digit Seven Segment LED |
| Grating | 600 lines/mm |
| Source | Tungsten halogen lamp |
| Sample Holder | Single position 10 mm cuvette holder |
| Min Sample Volume | 1 ml in 4 ml cuvette |
| Power | 230V,+/-10%,50Hz |
| Dimension | W420xD310xH125 mm |
| Accessories | Two Glass Cuvettes |
| Optional Accessories | Single Position 20/50 mm Cuvette Holder (Factory Installed) |
SYSTRONICS VISIBLE SPECTRO 104 sets new standards in accuracy and reliability. Wide spectral coverage and high resolution is achieved by using a powerful light source and a grating-based monochromator. A conveniently placed control enables the user to quickly orient the grating to provide monochromatic light of desired wavelength.
The electronic processing circuits and power supplies are solid-state / LSI-based to ensure high accuracy, stability and long life.
Measuring Modes :
Auto
- %Transmittance
- Absorbance
- Cocentration
Additional Information :
- Item Code: 104
- Delivery Time: 1-2 week
