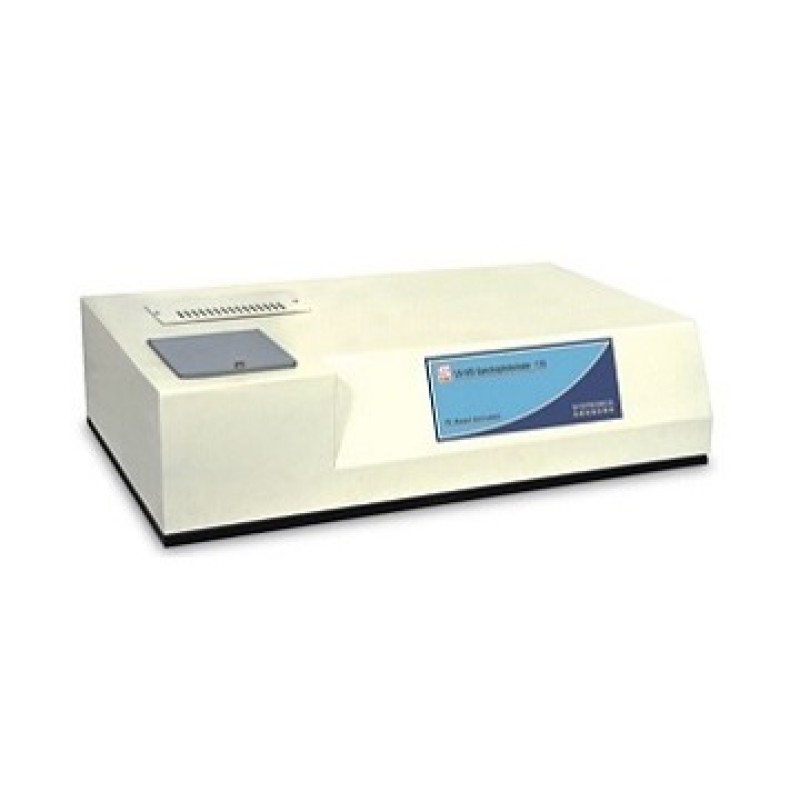

119 PC Based UV-VIS. Spectrophotometer
Product Details:
Minimum Order Quantity | 1 Piece |
Model | 119 |
Application | Laboratory Use, Industrial Use |
Wavelength Range | 200 to 1000 nm |
Brand | Systronics |
Photometric Range | -0.3 to 2.5 Abs, 0 to 100% T |
Optics | Single Beam |
Grating | 1200 Lines / mm |
Resolution | 0.1 nm |
Accuracy | +/-0.5 nm |
Repeatability | +/-0.2 nm |
Bandwidth | 1 nm |
Photometric Accuracy | +/-0.005 Abs at 1A |
Photometric Repeatability | +/-0.002 Abs at 1A |
Drift | 0.003 Abs / hr. (After 1 hr. warmup to 500 nm) |
Stray Light | Less than 0.1% at 220 nm & 340 nm |
Source | Tungsten Halogen Lamp (320 to 100 nm) Deuterium Lamp (200 to 340 nm) |
Scan Speed | Slow, Medium and Fast (minimum at a span of 100 nm) |
Detector | UV - enhanced wide range solid State Si-photodiode |
Baseline Correction | Automatic Baseline Correction |
Baseline Flatness | +/-0.003 Abs / hr. (After 40 minutes wram-ups) |
Sample Holder | 5 Position for 10 mm Cuvette (automatically) |
Power | 230V +/-10%, 50Hz |
Dimension | W745xD480xH200 mm |
Weight | 24 Kg |
Accessories | Two Matched 10 mm pathlength Quartz Cuvettes, Dust Cover & Manual |
SYSTRONICS UV -VIS SPECTROPHOTOMETER 119 PC based instrument. Both are offers 1 nm bandwidth. It provides three measuring modes :Percent Transmittance (10), Absorbance (ABS) and Concentration (CONC) with factors. The available operating modes are Single-Wavelength, Multi-Wavelength, Spectrum Scan and Time Scan. 117 is Combination of user friendly software, 20 X 4 alphanumeric LCD display, covers wavelength 200-1100 nm. All measurement results are available on the display except for the Spectrum Scan. A printer prints the scan besides providing hard copy of measurements. RS-232 is optional to enhance data processing ability through PC. 119 is covers the wavelength range from 200-1000nm Special software supports Multi-standard Calibration with linear or nonlinear curve fitting for concentration measurements, besides the K-factor method. The Personal Computer & application software enhance the data processing ability and offer Peak-Pick, Point-Pick, Expansion of Spectra, Overlaying of Spectra, l' to Derivatives, Averaging of two Scans, Subtraction of two Scans, Concentration Calculations, Spectrum Store/ Recall etc.
Both instruments having automatic base line correction such as scans the blank/ reference and stores its spectrum in memory to give the base line correction when a sample is scanned. User friendly menu driven operation & self-diagnostic wavelength calibration while switch on the power of the instruments. The instruments are modified Czerny-Monochromatic geometry for better aberration correction, holographic grating 12001ines/ mm blazed at 250 nm. with automatic selection of four glass filters to eliminate spectral order interference.
Optional Accessories:
- Holder for 50 mm or 100 mm cylindrical and rectangular cuvettes
- Personal Computer / Laptop
- Any printer compatible with PC operating system
Specifications:
Measuring Modes | % Transmittance |
Absorbance | |
Concentration (K-factor, Multi standard up to 5) | |
Operating Modes | Single Wavelength |
Multi Wavelength | |
Scan (with Multiscan facility) | |
Time Scan | |
Data Processing | Peak Pick, Point Pick, Valley Pick |
Zoom / Overlaying of Spectra | |
1st, 2nd, 3rd & 4th Derivatives | |
Averaging of Two Scans | |
Subtraction of Two Scans | |
Spectrum Store/Recall | |
Concentration of scan compared to base scans | |
Data Presentation | Display of graphic and tabular datra on computer monitor, Permanent data storage on hard disk, Hard Copy of Graphic and tabular datra on printer |
Additional Information:
- Item Code: 119
- Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P,D/A
- Delivery Time: 1-2 Week
