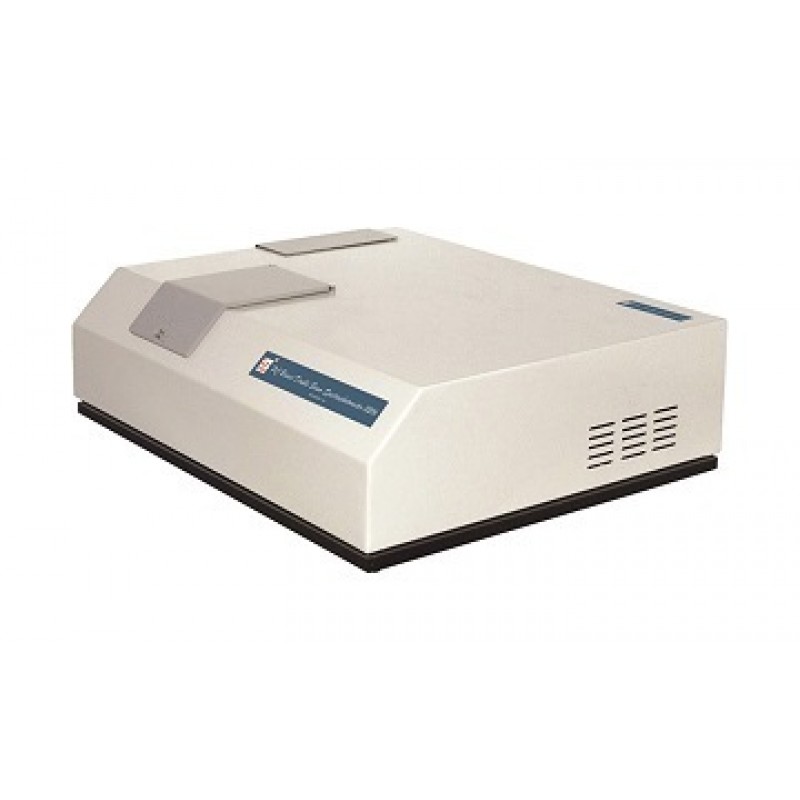

2206 PC Based Double Beam UV-VIS Spectrophotometer
Product Details:
Minimum Order Quantity | 1 Piece |
Model | 2206 |
Application | Industrial Use, Laboratory Use |
Wavelength Range | 190-1100 nm |
Brand | Systronics |
Photometric Range | +/-3.0 Abs (Usable upto +/-4.0 Abs) |
Stray Light | Less than 0.05 %T at 220 nm and 340 nm |
Wavelength Accuracy | +/-0.5 nm |
Wavelength Repeatability | +/-0.2 nm |
Wavelength Resolution | 0.1 nm |
Wavelength Bandwidth | 1.0 net |
Photometric Accuracy | +/-0.005 Abs at 1.0 Abs |
Photometric Repeatability | +/-0.002 Abs at 1.0 Abs |
Baseline Correction | Automatic Baseline correction |
Baseline Flatness | Within +/-0.003 Abs from 200 to 1100 nm (excluding noises) after baseline calibration |
Scan Speed | Slow, Medium and Fast |
Data Interval | Depends on wavelength range and scan speed |
Sample Holder | One fixed for reference and One for sample (10 mm pathlength cuvette) |
Source | Tungsten-Halogen lamp (320 to 1100 nm) Deuterium lamp (190 to 340 nm) |
Power | 230V +/-10%, 50Hz |
Dimension | 570(W) X 505(D) X 185(H) mm |
Weight | 23 kg |
Optional Accessories | Two matched 10 mm pathlength Quartz cuvettes |
Versatile instrument for Research and Development. The instrument is designed with precision and technique for accurate qualitative and quantitative Spectrophotometric analysis in Pharmaceutical, Agricultural, Chemical, Medical, Bio-technological, Forensic etc. fields. The PC based operation is user friendly for beginners and gives enough scope for data handling to experienced scientists.
Order Cut-Off Filter:
- Four glass filters, automatically positioned to eliminate grating spectral order interferences
Operating Modes:
- Single Wavelength
- Multi Wavelength (Max. 15 wavelengths)
- Scan (With multi-scan facility)
- Time / Kinetic Scan (With Derivative facility)
Measuring Modes:
- Absorbance
- %Transmittance
- Concentration (K factor, multi standard)
- Multi-Component Analysis (Max. 10 components)
Automatic Calibrations / Optimizations (GLP/GMP):
- Base line calibration
- Source optimization
- Wavelength calibration
- Electronics calibration
- Self-diagnosis
Data Processing:
- Peak Pick / Point Pick / Valley pick
- Expansion / Compression of Spectra
- 1st, 2nd,3rd and 4th Derivative
- Averaging of Scans
- Subtraction of first two scans
- Three levels of smoothening of Spectra
- Ratio, Corrected ratio, 2 point and 3 point net Abs (The facilities can be used for DNA, RNA & Protein Analysis)
Data Presentation:
- Display of graphic and tabular data on Computer Monitor, permanent data storage on hard disk, hard copy of graphic and tabular data on printer
Computer System:
- Intel Processor or higher version with Colour Monitor, RS-232 port or USB port with WIN-XP Operating System or above
Optics:
- Double beam optics with aberration corrected Holographic concave grating with 1200 lines/min blazed at 275 nm based Monochromator
RS 232 PORT:
- PC control (RS-232 or USB to serial)
Optional Accessories:
- Holder for 50 mm or 100 mm cylindrical and rectangular cuvettes
- Personal Computer / Laptop / Windows compatible printer
- For Kinetic Scan, use External Control Dry Bath / Incubator
- 5 Position auto sample holder for 10 mm pathlength cuvettes
Additional Information:
- Item Code: 2206
- Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P,D/A
