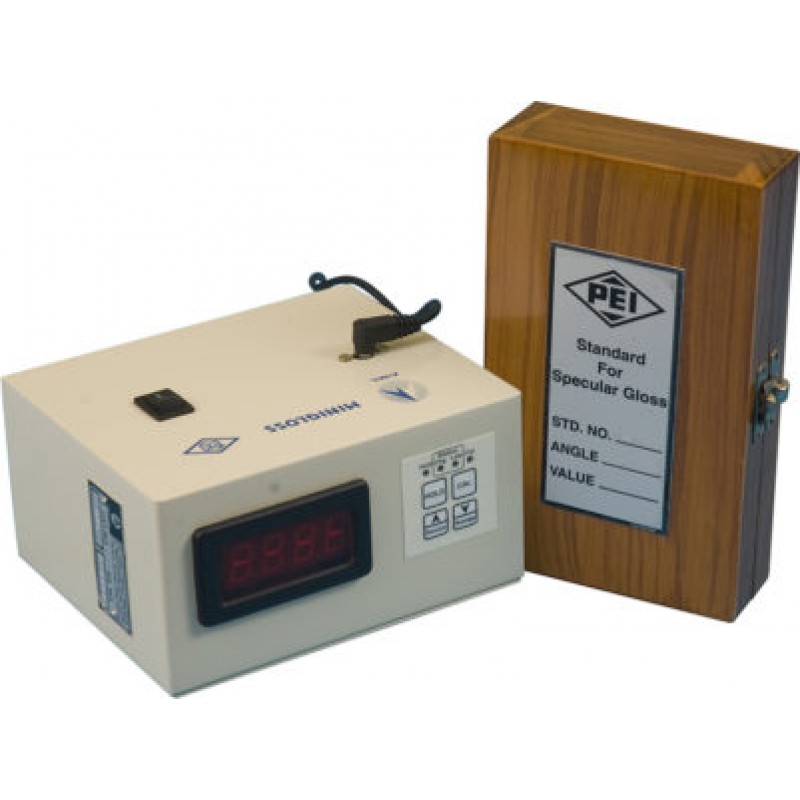

AIMIL Portable Gloss Meter
Product Details:
A truly Portable Gloss Meter with a micro controller base display and rechargeable batteries The unit is small and lightweight thereby being totally portable and is available in 20 degree, 45 degree and 60 degree geometry, A convenient HOLD facility allows the reading to be fixed even after removing the unit from the sample. To allow for surface variations, an averaging facility is provided of up to 20 readings.
- Ordering Information
AIM-07800 - Mini Gloss Meter 60 degree with standards and charger
AIM-07900 -Mini Gloss Meter 45 degree with standards and charger
AIM-08000Mini Gloss Meter 20 degree with standards and charger
Specifications:
- Accuracy- ± 1 Gloss Unit
- Repeatability- ± 0.5 Gloss Unit
- LCD Display - 20x4 Alphanumeric Display
- Resolution- 0.1 GU
- Memory- 7500 Readings
- Communications- RS232
- Light Source- LED (Long Lasting and Stable)
- Detector -Sealed Silicon Photocell
- Power- NiMH Rechargeable battery pack with external charger
- Software- Maximum Value, Minimum Value, Standard Deviation, Average and Coefficient of Variance can be calculated through software, View Graphs
- Accessories Supplied- Calibrated Standard (Hi and Low) and Matt Plate + Charger
- Language- English
- Dimensions 150 x80 x115 mm
- Weight- 850 gm
