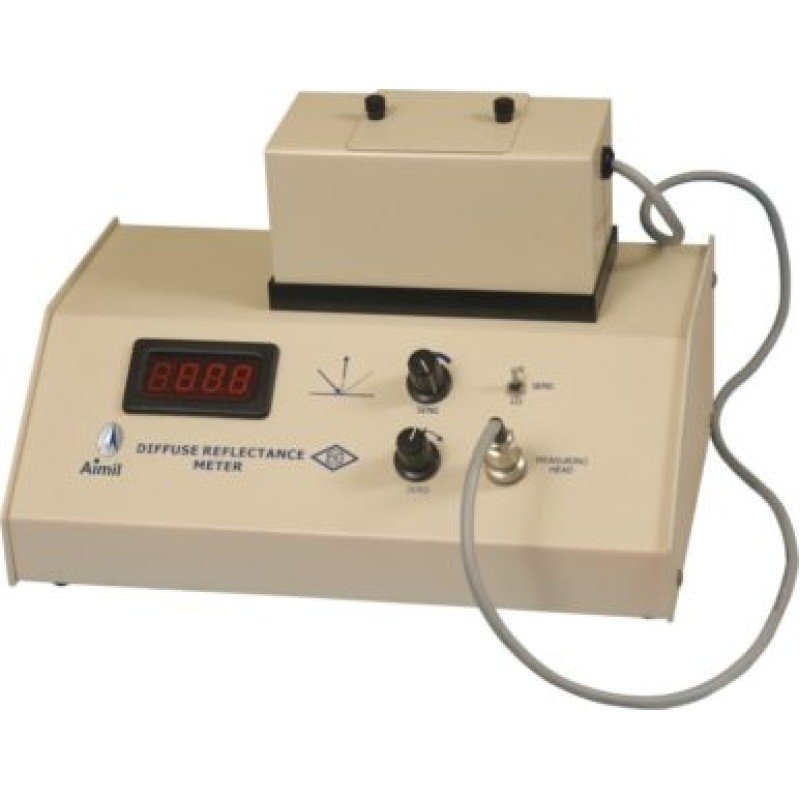

AIMIL Reflectance Meters
Product Details:
Whiteness is measured in terms of diffuse reflectance, which is the ratio of reflected light measured at 90deg. after passing through a suitable filter and the incident light that is generally at 45o to the surface of the samplePaper, Textiles, Food items, Pigments, Tiles and Minerals Ideal for measuring whiteness & brightness Can be used to measure both whiteness & brightness by changing filters only Standard MgCO block supplied with the instrument Simple to operatE
- Ordering Information:
AIM-071000 TBF - Reflectance Meter with Blue Filter for Brightness measurement AIM-071000 TGF - Reflectance Meter with Green Filter for Whiteness measurement AIM-071111 - Green Tristimulus Filter AIM-071112 - Blue Tristimulus Filter AIM-071113 - Red Tristimulus Filter AIM-071114 - Brightness Filter
Specifications
- Light Source -Long Life LED
- Detector- Sealed Silicon Photo Detector
- Diffuse Reflectance- 00.0 to 100.0 with negative & over range indication, 3.5 digit LED (with decimal display)
- Accuracy -(± 1%)
- Accessories -MgCO Block as a secondary standard, powder trays, presser plate, dust cover, 3 manual. Plate for MgO deposition, Mg wire.
- Dimensions 30 x 20 x 19 cm
- Weight Net 3.5 kg
- Operating Voltage 230V, 50 Hz
