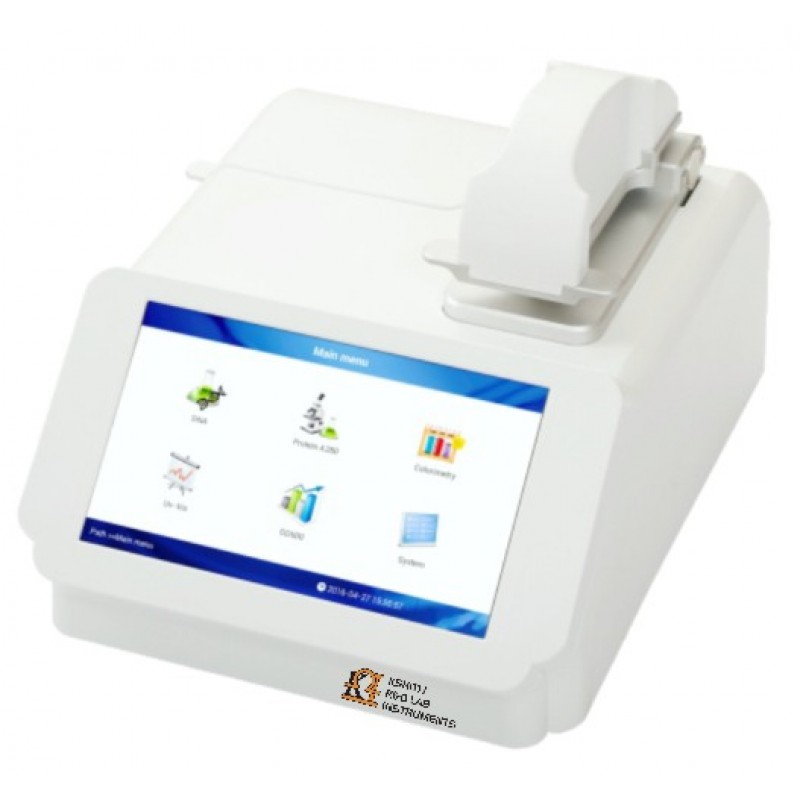

Advanced Nano Spectrophotometer, Model No.: KI- 5210
Product Code : KI-5210
Product Features :
- Wide range of wavelength (200-800nm)
- 7 inch touch screen with simple interface. No computer required
- Android operating system with free software update
- Only require 0.5-2µl sample to perform accurate measurements.
- Od600 measurement, ideal for bacterial concentration measurement
- Direct micro-volume measurement with 0.5-2µl of sample. Eliminates the need for expensive accessories.
Specifications :
Model No. | KI- 5210 |
Wavelength Range | 200-800nm |
Sample Size | 0.5-2.0µl |
Path Length | 0.2mm (High Concentration)/ 1.0mm (Ordinary Concentration) |
Light Source | Xenon Flash Lamp |
Detector Type | 3864-element linear silicon CCD array |
Wavelength Accuracy | 1 nm |
Spectral Resolution | <3nm (FWHM at Hg 546nm) |
Absorbance Precision | 0.003Abs |
Absorbance Accuracy | 1% (7.332Abs at 260nm) |
Absorbance Range | 0.02-100A |
Detection Range | 10-5000ng/ul (dsDNA) |
Measurement Time | <6S |
Dimensions | 210 x 268 x 181mm |
Data Output | USB/ SD-RAM Card |
Sample Pedestal Material | Aluminum alloy and Quartz Fiber |
Operating Voltage | 24V DC |
Operating Power Consumption | 40W |
Standby Power Consumption | 5W |
Software Compatibility | Android System |
Light Source | LED |
Wavelength Range | 600+8nm |
Absorbance Range | 0-4A |
