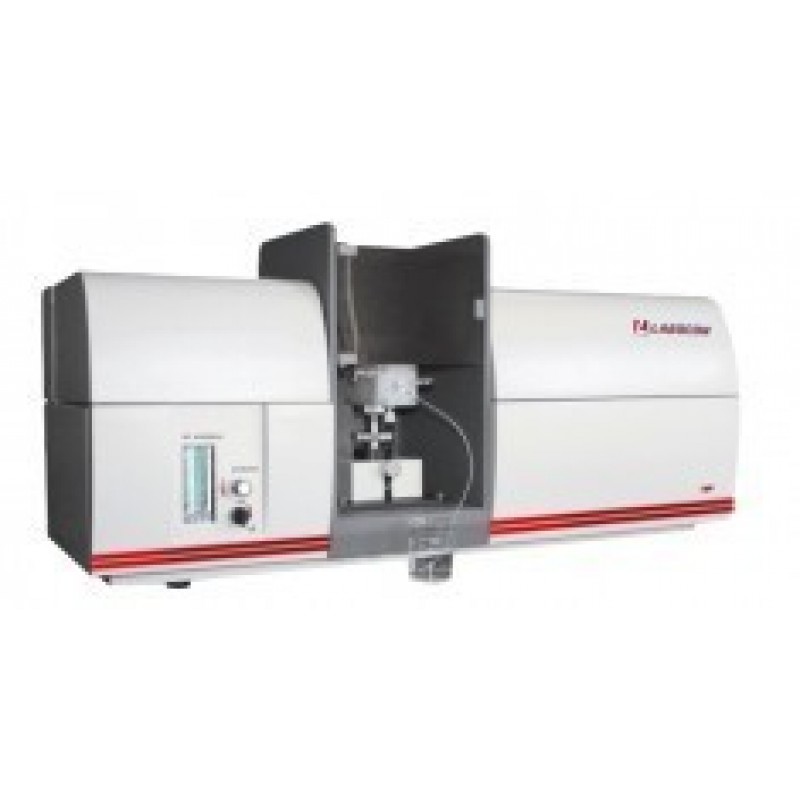

Atomic Absorption Spectrophotometer
Product Details :
- Gas Control : Software controlled quick gas conversion and safetyprotection device used to analyse airacetylene flame and nitrous oxide-acetylene flame
- Spray Chamber Metal Glass Spray : Burner Corrosion resistant titanium burners available for both air/acetylene and nitrous-oxide acetylene
- Safety System : Safety interlock mechanism that monitors the burner type, burner fitted, gas pressures. Flame on/off sensors; Power failure automatic shutdown. Liquid trap system, pressure relief plug and flame shield to protect from UV radiationCzerny-Turner grating monochromator
- Grating density of 1800 lines
- Anti-corrosive plastic sprayed chamber
- Metal glass spray set
- Photomultiplier tube as detector
- Optimized 3D lights for maximum energy
- Can distinguish between manganese light
- 0-10mA and 400Hz four lamps and optional six lamps with auto switch
- Air cooled pre-mixed 100mm single slit titanium burner
- Less than 1% precision
- Air-acetylene and oxygen enriched air-acetylene flame method
- Hydride generation spectrometry
- Automatic calibration, curve fitting and concentration calculation
- Automatic calculation of average concentration, standard deviation, relative standard deviation
- Acetylene gas leakage alarm
- Rapid and convenient test results opened in office software
- Software remote control to solve technical problems
- Windows XP/Vista operating system
SPECIFICATION
Wavelength Range | 190-900 nm |
Wavelength Accuracy | ±0.25 nm |
Wavelength Repeatability | 0.05 nm |
Spectral Bandwidth | 0.2, 0.4, 1.0, 2.0 nm |
Temperature Range | 10-35°C |
Working Humidity | ≤80% |
Resolution | <20% |
Baseline Stability | 0.002A/30min |
Characteristic Concentration Limit | Cu: 0.025g/ml/1% |
Detection Limit | Cu: 0.006g/ml |
Background Calibration | - |
Overall Dimension | 1000x400x470 mm |
Weight | 70 kg |
Power | 150 W |
Power Supply | 220V 50Hz |
Catalog No. | 9523127164 |
APPLICATION
Labocon Atomic Absorption Spectrophotometer LAAS 100 series is widely used in analytical chemistry protocols, applications such as food and drug safety, clinical diagnostics, petrochemical, agricultural, environmental monitoring.
Additional Information:
- Item Code: LAAS-102
