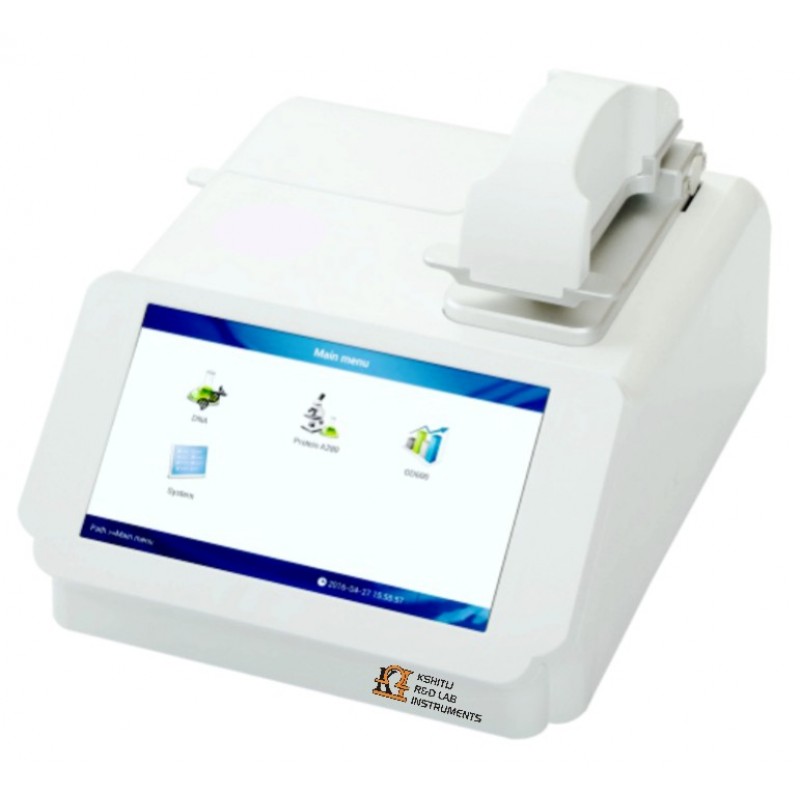

Nano Spectrophotometer, Model No.: KI- 5100
Product Code : KI-5100
Product Description :
Product Features:
- Nano 5100 is a basic micro-volume UV spectrophotometer designed (only 2 types of wavelength : 260nm and 280nm) for the measurement of nucleic acids and proteins.
- It is added a function of bacterium cell concentration detection (OD600)
- Android system operation, 7 inch touch screen no computer Required, easy to use
- The data can be printed with built-in printer, the data can output via SD-RAM Card and USB memory
Specification :
Model No. | KI- 5100 |
Wavelength Range | 230nm/ 260nm/ 280nm |
Minimum Sample Size | 0.5-2.0µl |
Path Length | 0.2mm (High Concentration)/ 1.0mm (Ordinary Concentration) |
Light Source | Xenon Flash Lamp |
Detector Type | UV- Silicon Photocell |
Wavelength Accuracy | ----- |
Spectral Resolution | ----- |
Absorbance Precision | 0.003Abs |
Absorbance Accuracy | 1% (7.332Abs at 260nm) |
Absorbance Range | 0.02-80A |
Detects Nucleic Acid Upto | 10-4000ng/ul (dsDNA) |
Measurement Time | <15S |
Sample Pedestal Material | Aluminum Alloy & Quartz Fiber |
Data Output | USB |
Operating Voltage | 24V DC |
Operating Power Consumption | 25W |
Standby Power Consumption | 5W |
Dimensions | 210 x 280 x 181mm |
Weight | 3.6kg |
Software Compatibility | Android System |
Light Source | LED |
Wavelength Range | 600+8nm |
Absorbance Range | 0-4A |
