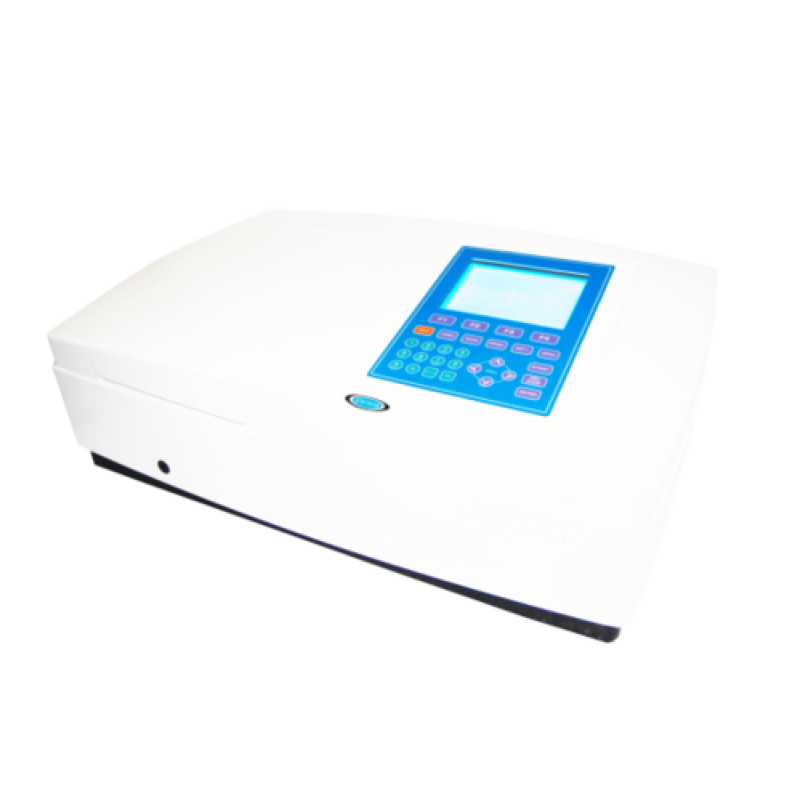

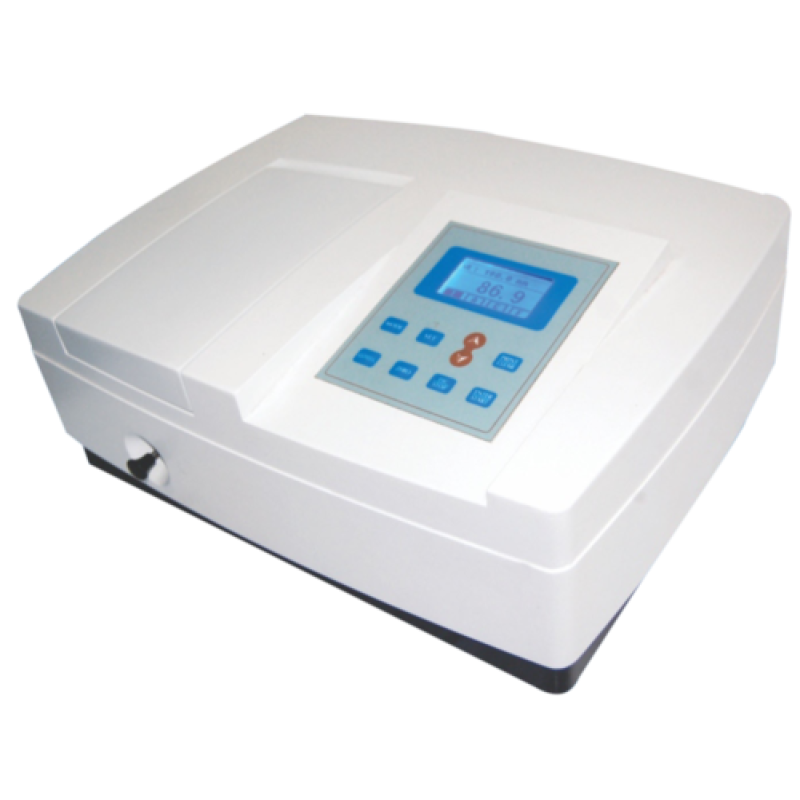

UV VIS Single Beam Spectrophotometer (MT-138)

Product Details :

UV VIS Single Beam Spectrophotometer (MT-138)

Matching up with the ever increasing requirements of the customers, we provide UV VIS Single Beam Spectrophotometer. This UV VIS Single Beam Spectrophotometer (Scanning) is extensively used in different industries for scanning purposes. To get the total satisfaction of clients, we provide this product at market leading price.

Features :

• Large LCD screen (128*64) Dots
• Can display and save 50 groups of data, 5 groups per screen
• Data can be restored after a sudden power cut
• Auto setting Wavelength
• Tungsten lamp deuterium lamp can be turned on/off individually to extend lifetime
• Automatically WL Calibration and dark current getting with Scanning

Technical specifications :

• Optical System: Single-Beam Grating 1200 lines/mm
• Wavelength Range: 190-1000 nm
• Bandwidth: 2 nm
• Wavelength Accuracy: ± 1 nm
• Wavelength Repeatability: 0.5 nm
• Wavelength Setting: Auto
• Photometric Accuracy: ±0.5 % T
• Photometric Repeatability: 0.3 % T
• Photometric Range: -0.3-3 A, 0-200 % T
• Stray Light: ≤ 0.3 % T
• Stability ± 0.002 A/h @500 nm
• Display: 128 * 64 Dots LCD
• Detector: Silicon Photodiode
• Standard Cell Holder: 4-position 10mm cell changer
• Light Source: Tungsten Deuterium lamp
• Output: USB Port Parallel Port (Printer)
• Power Requirements: AC 85 — 250 v
• Dimension: 420 x 280 x 180 mm
• Weight: 16.950 Kg
• Net: 13.00 Kg

Standard configuration :

• Main set: 1 No.
• USB cable: 1 No.
• Accessory kit including a 4 glass cell (1 cm): 1 No.
• 2 quartz cell (1 cm): 1 No.
• Operating manual software manual: 1 No.
• Dust cover: 1 No.
• Software CD: 1 No.
• Software key: 1 No.
• Power cable: 1 No.

Applications :

• Medicine/ pharmaceutical
• Industry environmental monitoring
• Commodity inspection
• Agricultural chemistry
• Teaching in colleges universities
• Metallurgy
• Geology
• Machine manufacturing
• Petrochemical industries
• Water and waste water labs
• Food and beverage labs
