UV-VIS Spectrophotometer
Product Details :
Model | 525 |
Application | Laboratory Use, Industrial Use |
Brand | LALCO |

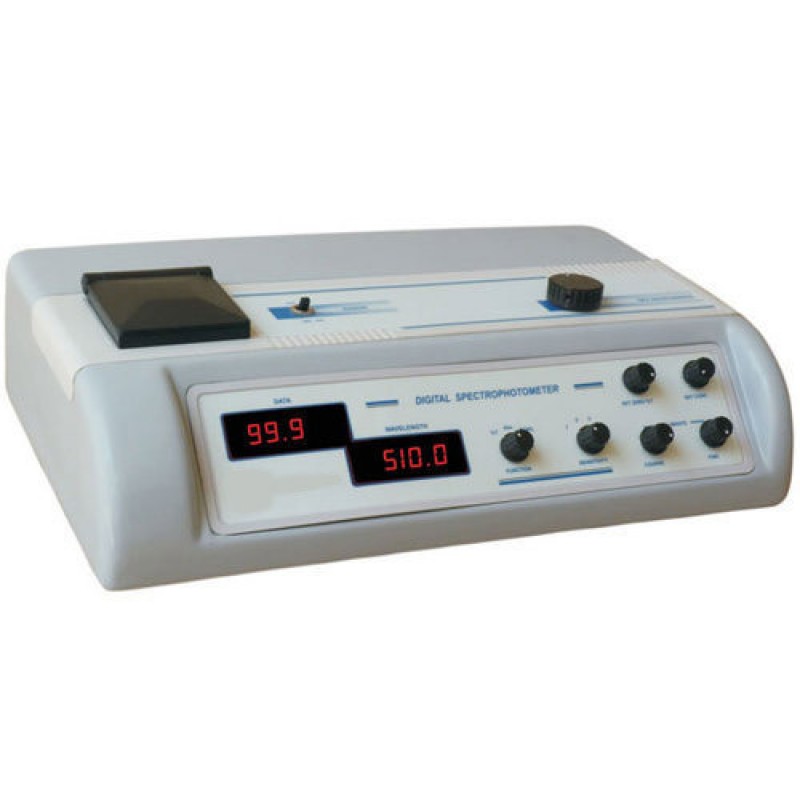

Digital Spectrophotometer Model 525 526 is an economical, reliable, rugged and most accurate system for spectrophotometric analysis of any concentration. It operates at a wave length range of 340 to 960 nm. Its output is available on 3 1/2 digit LED display in terms of Optical Density, Percentage Transmission and Concentration. Highly advanced solid state I.C. Technology has made its circuit very stable an accurate. Desired wave length can be selected by adjusting the disc at the top panel.
Model | 525 | 526 |
Range | 340 to 960 nm | 340 to 960 nm |
Resolution | 0.1%T, 0.001 Abs | 0.1%T, 0.001 Abs |
Output | %T: 0 t0 100%, Abs; 0 to 1.999, Conc; 0 to 1999 | %T: 0 t0 100%, Abs; 0 to 1.999, Conc; 0 to 1999 |
Detector | Silicon Photodiode | Silicon Photodiode |
Light Source | 6V, 1 Amp. Vertical Tungsten Halogen Lamp | 6V, 1 Amp. Vertical Tungsten Halogen Lamp |
Monochromater | 600 Lines / mm grating | 600 Lines / mm grating |
Path Length | 10 mm | 10 mm |
Spectral Bandwidth | 10 mm | 10 mm |
Wave Length Resolution | 5 nm | 1 nm |
Wave Length Accuracy | 2.5 nm | 1 nm |
Repeatability | +2 nm | +1 nm |
Display | 3 1/2 digit LED Display | 3 1/2 digit LED Dual Display |
Opeating Temp. | 5 to 45oC | 5 to 45oC |
Power | 230V+ 10% AC 50 Hz | 230V+ 10% AC 50 Hz |
Dimensions | 490 x 300 x 165 mm | 490 x 300 x 165 mm |
Weight | 8.5 kg (approx.) | 8.5 kg (approx.) |
Accessories | Test Tubes(12mm dia) 10 nos | |
Product Range | Photo Colorimeters, Spectrophotometers, Digital pH Meters, Conductivity/TDS Meters, Turbidity Meters, Digital D.O. Meters, Water Soil Analysis Kits |
Additional Information:
- Item Code: 525-526
- Delivery Time: 4-5 Days
