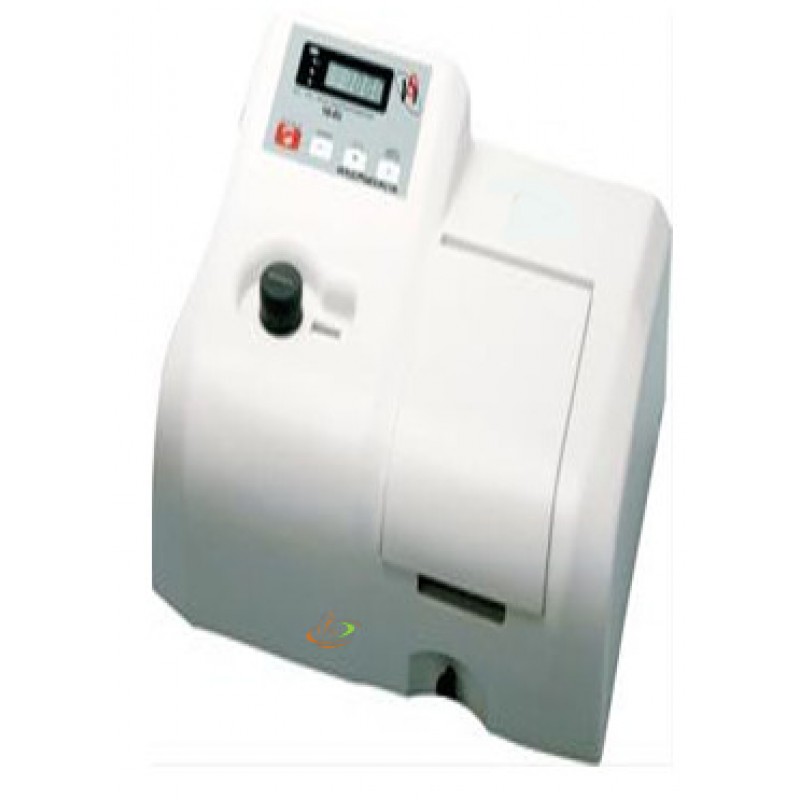

Zonotech Microprocessor-UV Visible Spectrophotometer BUV-25
Product Details :
Photometric Range | % T:0 to 100%, Abs.:0 to 1.999 Conc.:0 to 1999, K-Factor:0 to 1999 |
Accuracy | +0.005 Abs at 1.0 Abs +0.010 Abs at 1.0 Abs |
Stray Light | Less thn 0.1% Abs at 320 nm |
Readability | +1 Count |
Data Readout | Single Line LCD display |
Key Board | 4 Keys, Soft touch membrane type |
Painter Interface | Printer interface for any printer |
Serial Interface | RS 232C interface |
Light Source | a) Tungsten Halogen Lamp b) Deuterium Lamp (D2) |
Detector | Wide range Silicon Photodiode |
Optics | Complete mirror optics with resolution 1200 grooves/mm grating |
Sample Holder | 4 position adjustable sample holder |
Power | 230V + 10%, 50 Hz. AC |
Dimensions | 420 x 350 x 240 mm (lxbxh) Approx. |
Weight | 10 Kg (Approx.) |
Wavelength | 195 to 1000nm |
Spectral Bandwidth | 2 nm |
Accuracy | + 0.5 nm |
Repeatability | + 0.3 nm |
Resolution | 0.1 nm |
