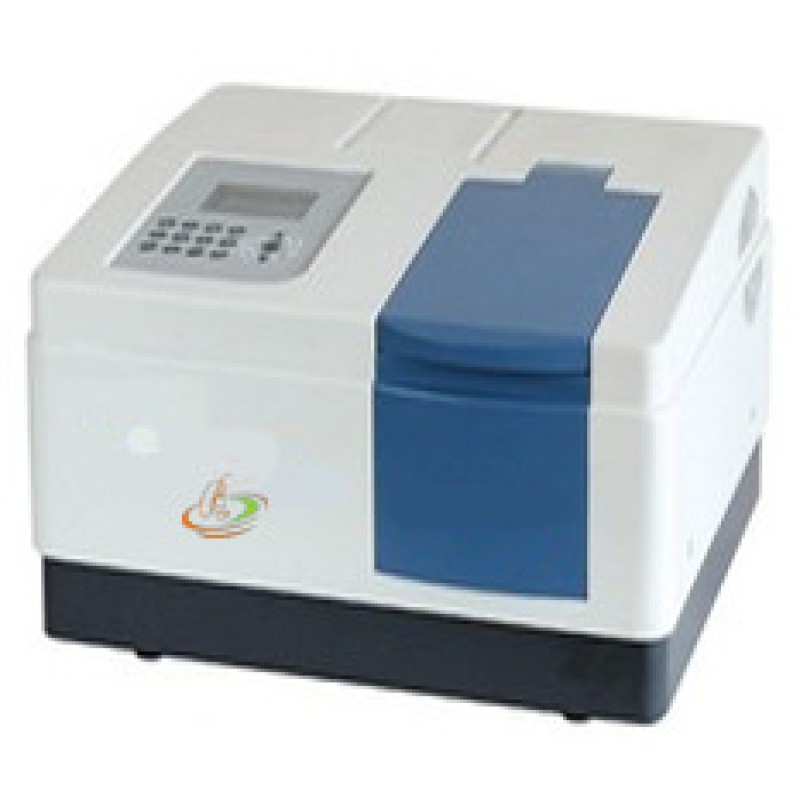

Zonotech Single Beam UV Visible Spectrophotometer BUV-24
Product Details :
Optical Design | Sinle-beam, grating-based, dual detectors |
Display | 6 inches 128×64 dots backlight digital LCD |
Data Interface | RS232(printout or communication) |
Printer | Thermal graphics printer or universal Printer |
Languages | Software, printout and operators manual: English |
Software | Photometric measurement (Absorbance ration, Absorbance difference) Spectral measurement (Survey scan) Quantitative measurement (Standard curve, Multi wavelength) Kinetic measurement |
Keyboard | Membrane Key Pad |
Cell Holder | 4-position automatic cuvette rack for 4 cuvettes - 10 MM. |
Spectral Bandwidth | 2 nm |
Optical Design | Split-beam,grating-based,dual detectors |
Lamp Source | Prealigned deuterium lamp with 3000 hours lifetime, Halogen-Tungsten Lamp with 10000 hours lifetime |
Wavelength Range | 190-1100nm |
Wavelength Accuracy | ±0.5nm |
Wavelength Reproducibility | ≤0.2nm |
Photometric range | 0-999.9%T -3A-3A 0-9999C |
Photometric Accuracy | ±0.3%(t) (0-100%t) 0.002A (0-0.5A) 0.004A(0.5-1A) |
Photometric Reproducibility | ≤0.15%(t) (0-100%t) 0.001A(0-0.5A) 0.002A(0.5-1A) |
Photometric Readout | Absorbance,Transmittance,Concentration Energy |
Noise | ±0.001A |
Drift | 0.001A/h |
Stray Light | ≤0.05%(t) (220nm, NaI) |
Power Requirements | Automatically adapted input power 100-240volts |
Warranty | 1 Year Warranty. |
