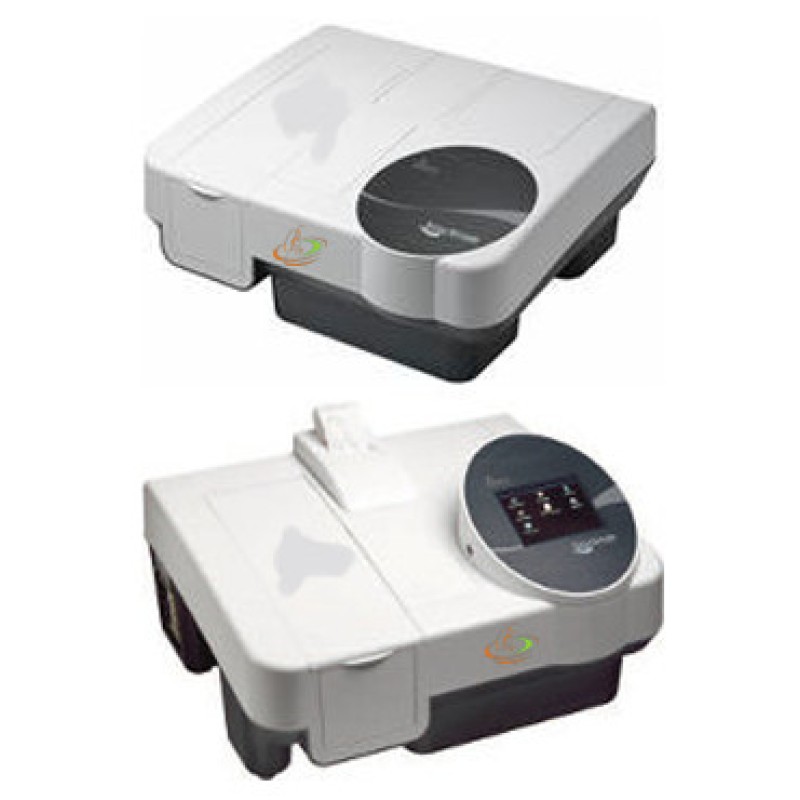

Zonotech Touch Screen Double Beam UV-Visible Spectrophotometer ZUV-15
Product Details :
Wavelength Range | 190 ~ 1100 nm |
Wavelength Accuracy | .05 nm |
Wavelength Reproducibility | 0.2 nm |
Spectral bandwidth | 1 nm |
Photometric Accuracy | 0.3% |
Photometric Reproducibility | 0.15 % |
Stray Light | 0.05 % |
Stability | < 0.001A/h |
Baseline | < + 0.002A |
Noise | 0.15 % for 100 % =3D 0.01% for 0 % |
Photometric range | Trans 0 ~ 200.0 % Abs -0.301 ~ 3.000 A Conc . 0 ~ 99999 Factor 0 ~ 99999 |
Display | 5.6 inch 800×480 pixel touch-screen graphic LCD |
Lamp | Prealigned long lifetime Shimadzu deuterium lamp. Fuji long lifetime halogen-tungsten lamp. |
Optical System | C-T configuration diffraction grating monochromator, double beam ratio 20 recording system. |
Interface | RS232 serial interface (with RS232C-USB2.0 converter suit) |
Scanning Function | Ok |
Power Supply | 100v-240v (50-60)±Hz |
Dimensions | 490×490×210 mm Packing Dimensions 620×620×380 mm |
Weight | N.W.:20Kg G.W.:25Kg |
