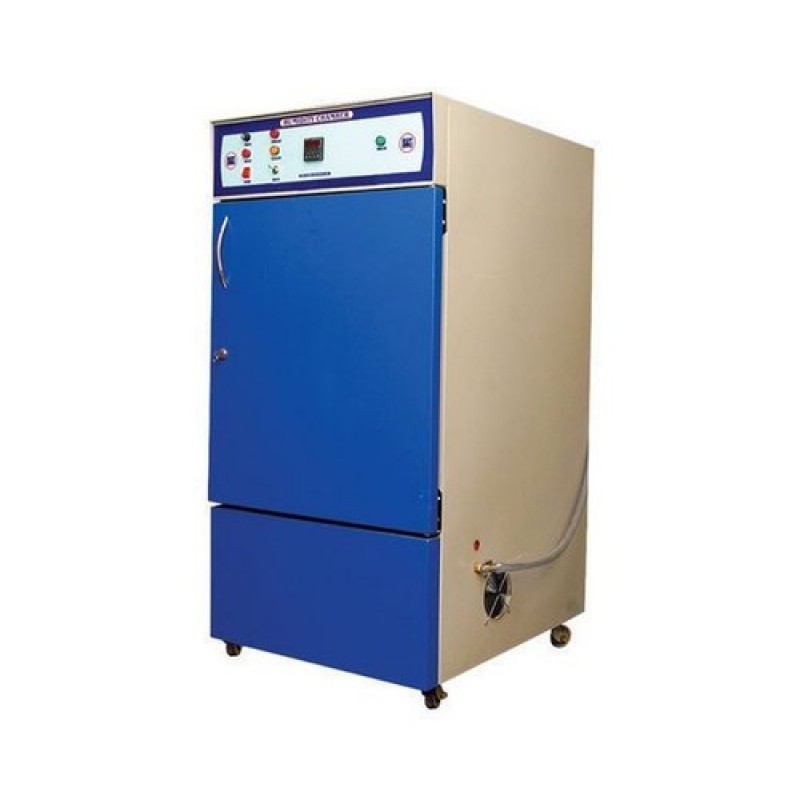

Stability Chamber
Product Details :
Temperature Range | 60 Degree C |
Humidity Range | 95% |
Voltage | 230V |
Frequency | 50Hz |
Material | 55 |
Capacity | 90L |
Size | 3 Feet |
Brand | TIS |
Inner Dimension W X D X H | 45 X 45 X 45 Cm |
No. of Shelves | 2 |
Current Range | 20A |
Material Grade | SS304 |
Other Details :
- ICH GUIDELINES
- PSI chambers are specialized designed to carry out stability & shelf list test on drug & druges
- substance according ICH Guidelines.
Technical Specifications:
- Temperature/ Humidity Display : Digital LED 3 ½ Digit, Resolution :0.1 o C / 1 % RH
- Control : Microprocessor based PID Control with auto tune CE Marked
- Temperature Sensor : PT - 100, RH Sensor: Direct Capacitance type.
- Heating : 'U' Shaped Nichrome wire heating in SS Sheathing
- Cooling : CFC Free Copeland compressor utilizing R 134A eco friendly refrigerant
- Steam Injection : Boiler with reservoir made of thick stainless steel, with heater, water inlet control, low water level safeguard and insulation
- Air circulation : Flange motor with impeller/ Blower
CONSTRUCATION
- Double Walled, gap between walls filled with PUF Insulation
- Standard Model : Stainless Steel Mirror Polished Chamber and heavy guage powder - Coated CRC exterior.
- GMP model : Stainless steel mirror polished chamber and exterior of dull finish stainless steel.
- Double door : Inner full viewing door and outer door insulated with lock and key arrangement
- Control panel with electrical switch gear and refrigeration system (CFC Free) mounted on top for esay service accessibilty.
- Unit mounted on castor wheels
CHAMBER DESIGN :
- As per GMP guidelines for long duration test.
- Control Accuracy of temperature & humidity.
- Uniformity of conditions through out the chamber.
- Direct display of humidity in % RH.
- PT-100 sensor for dry / wet bulb or capacitance type humidity sensor available.
- Low water level cut off device.
SAFETY FEATURES :
- Over heat temperature and humidity cut off with alarm
- Low temperature and humidity alarm
- Low boiler water level safeguard
- Electrical overload compressor cut off
- Time delay for compressor switch on
- Electrical short circuit breaker
UTILITIES :
- Distilled water or DM water line
- (Consumption approx. 20 Liters / 24 hrs for 450 Liters Model)
- Room temperature around machine preferably of 25o C
- Water drain line with ½" nozzle to be provided at floor level
DATA RECORD :
- 21 CFR Part 11 Compliance Secured audit trail
- Multilevel Passwords
- Print Interval Programmable Between 1 to 240 minutes
- Multi Chamber data acquisition on Single Software.
- Data Generated on PDF Report
- Account Blocking and reactivating facility.
- Log data, event and audit trail data recording
- Tabular and graphical report, audit trail report
- We are Mfg. Of Complete S.S. (GMP).
- We are Provided I.Q., O.Q., P.Q., Documents and user manuals.
- We are Provided Micro Processor PID Controller with data Storage for pen drive or PC interface with 21 CFR Part 11 Compliance Software.
