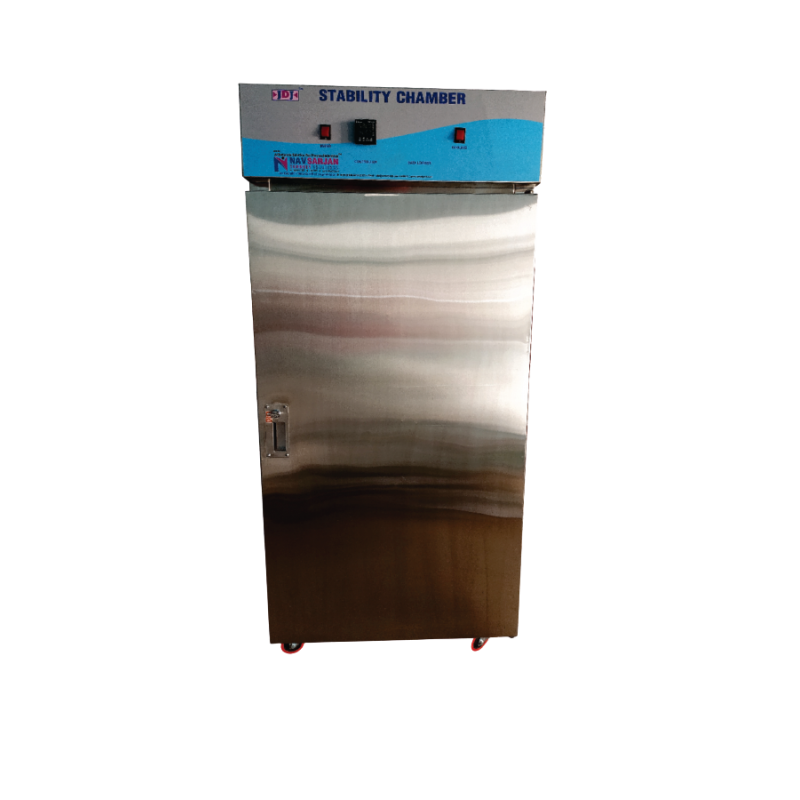

Stability / Humidity Chamber

Product Details :

CONSTRUCTION

• Double wall, outer Chamber made by cabinet mild steel powder coated or stainless steel and Inner Chamber made by Stainless Steel.

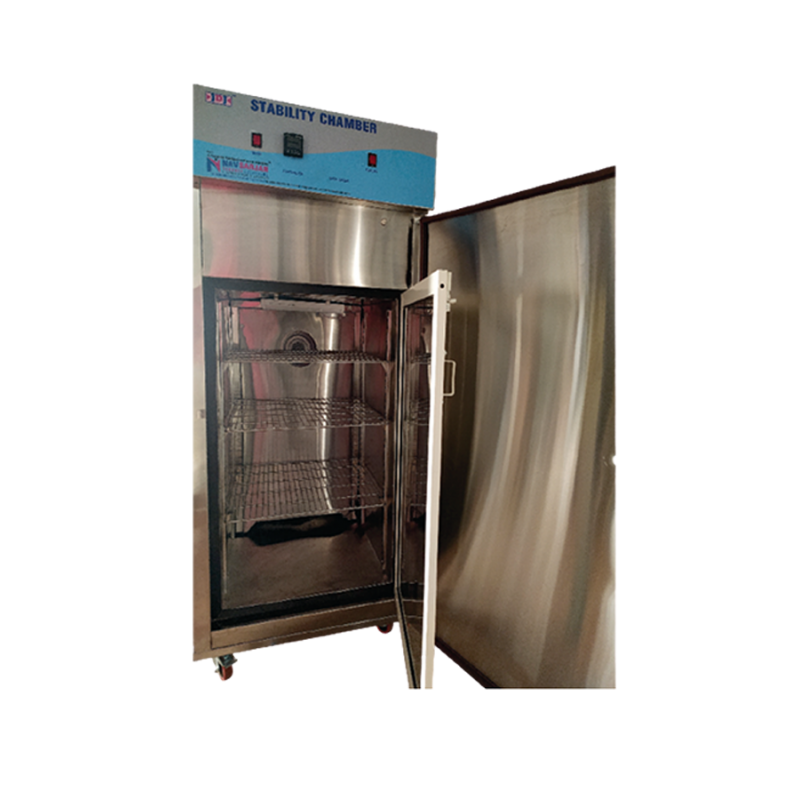

• Full view glass door a multi pane viewing door prevents condensation & allows product view. Inner & outer doors are sealed around the entire perimeter by silicone sponge rubber gasket.
• The chamber is insulated by filling PUF in the space between outer body and chamber to prevent temperature loss.(Insulation-75mm)
• Chamber illumination: LED light with door switch.
• Castor wheels for easy move ability
• Trays: Stainless steel.

TECHNICAL DATA

• For conditions as per ICH guidelines ( International Conference of Harmonization) 25°C – 60% RH/40°C – 75% RH/ 30°C – 65% RH/25°C – 40% RH/ 40°C – 25% RH/ 30°C – 35% RH.
• Temperature Range : 10.0°C to 60.0°C
• Accuracy/ Uniformity : ± 1°C / ± 2°C
• Humidity Range : 25% RH to 95% RH
• Accuracy/ Uniformity : ± 3 % RH / ± 5 % RH or better
• Temperature / Humidity display : Digital LED.
• Digital Temp. Controller : Microproceser based auto Tune  P.I.D Digital Temperature. Controller  with PT 100 Sensor. (Make: i-therm Or equivalent)
• Resolution : 0.1°C / 0.1% RH
• Temperature sensor : PT – 100
• RH sensor : 0 to 3.3 V DC
• Heating : ‘U’ shaped tubular heater in stainless steel.
• Cooling : CFC free compressor utilizing R 134A eco friendly refrigerant, with condenser, motor and relay or as per the requirement of customer for higher accuracy.(Compressor make: Emerson or equivalent)
• Steam injection : Boiler with reservoir made of thick stainless steel, with heater, water inlet control, low water level safeguard
• Air circulation: cooling type fan with impeller / blower and flange type motor.
• Electrical: 230V / 15A / 50 Hz

DOCUMENTATION

• We provide Manual &DQ, IQ, OQ, PQ documents compliant to competitive regulatory guidelines.
• We provide calibration certificates & Temperature and R.H Mapping Report for Stability Chamber, which
• are traceable to national standards.
• We also provide S.O.P for Stability Chamber.

SAFETY FEATURES

• High Temperature safety cut off, Low water level boiler cut off
• Electrical overload cutoff relay for compressor, Time delay for compressor switch ON

PRE INSTALLATION MANDATORY REQUIREMENT

• Distilled water or DM water continuous supply at 3 feet height.
• Room temperature around machine preferably at 25°C with air conditioning or a well-ventilated room With exhaust fan. However, surrounding temperature should not exceed 30°C.
• Stabilized input voltage of 230V A.C Use of servo controlled stabilizer is recommended.
• Water Drain line with 1/2″ nozzle to be provided at floor level.

OPTIONAL ACCESSORIES :

STAND BY REFRIGERATION SYSTEM

• Stand by compressor manual switchover facility with compressor time delay

PC/ PRINTER INTERFACE UNIT

• Facility to print records on printer with set values, actual values, date and time with variable print time

SOFTWARE

• 21-CFR PART 11 COMPLIANCE SOFTWARE
